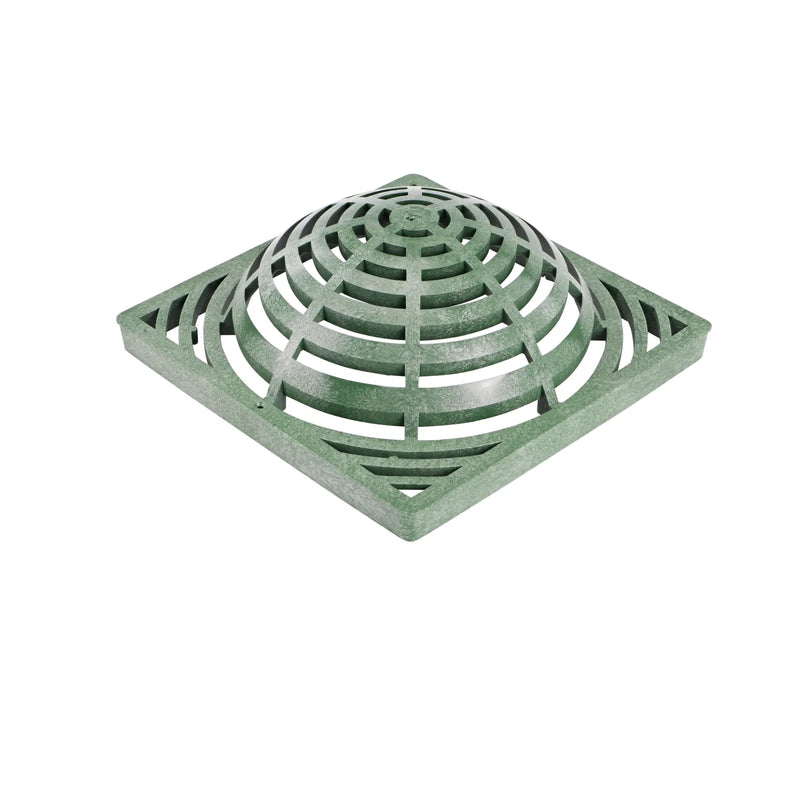

12" Square Atrium Grate, Green
Atrium grates are ideal for planter beds, mulch areas, window wells, and areas prone to debris collection. This grate helps to collect and remove excess water from driveways, patios and any other outdoor areas, designed for maximum durability to handle light foot traffic. NDS grates are a proven alternative to traditional concrete drains with UV inhibitors are used to prevent fading and cracking from the sun, chemical-resistant, rustproof and maintenance-free, lightweight and easy to install. NDS has a full line of drainage products, fittings and accessories available.
Structural Foam Polyolefin Dome Atrium Grate with UV inhibitor.
- Open surface area approx. 50.50 square inches. 154.79 GPM.

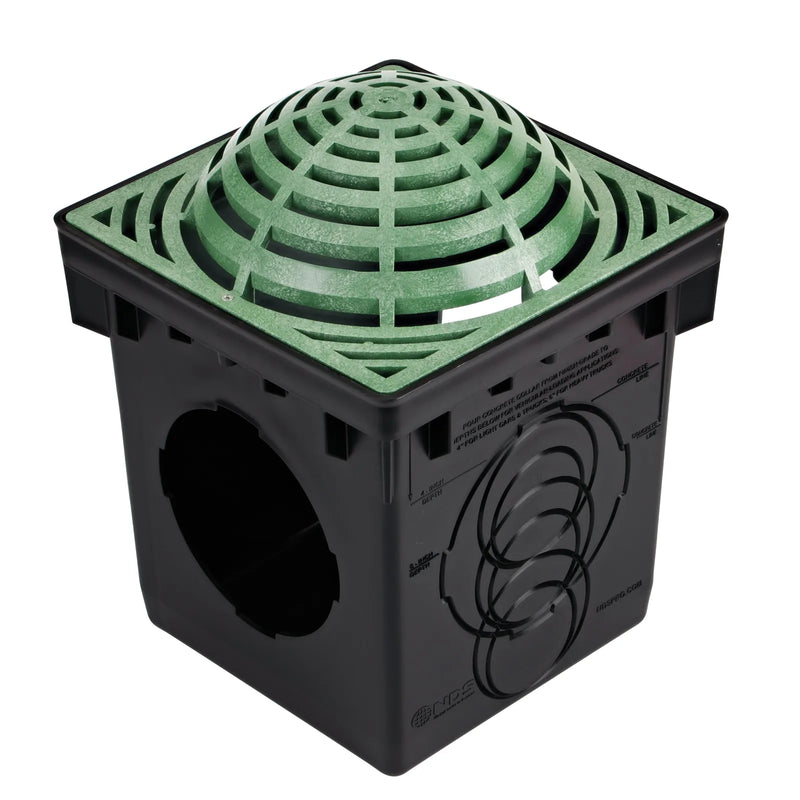

- Fits 12x12 Catch Basins
- Color: Green
Product type Grates
Material HDPE
Color Green
Length 11.75
Width 11.75 in.
Height 6"
Weight 1.7400
