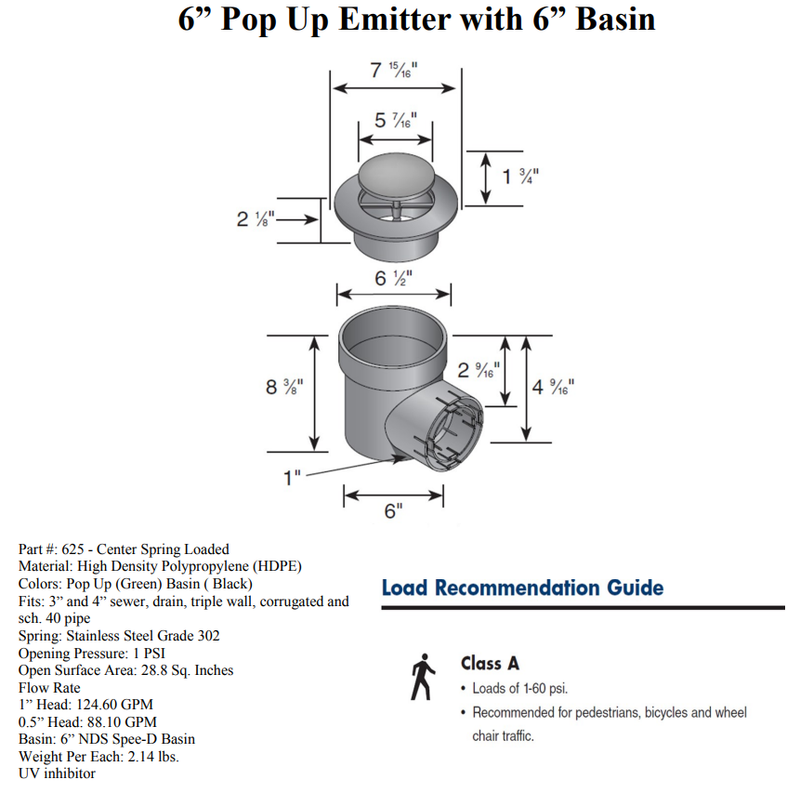

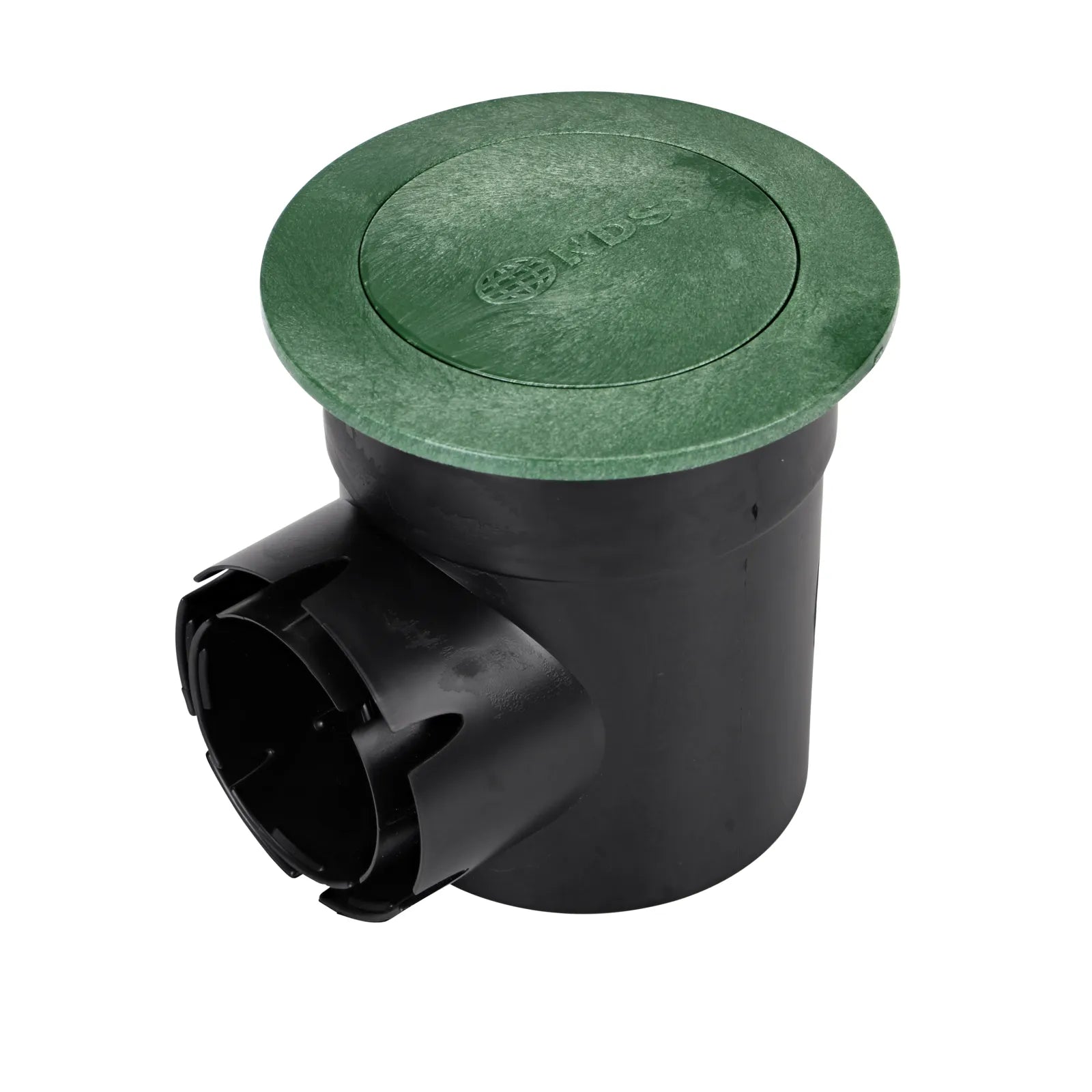

NDS 625 - 6" Pop-Up Emitter with Spee-D Basin
Create a high-capacity emitter with this combination of 6 in. Pop-Up Drainage Emitter with 6 in. Round Spee-D® Catch Basin Drain. Pop-up emitter cap pops up to release water when pressure builds, closes once flow diminishes, and stays closed when not in use to prevent debris and rodents from entering the drainage system. Flat profile design blends discreetly into the surrounding landscape. The Pop-Up Emitter with 6 in. Round Spee-D® Catch Basin Drain connects to 3 in. & 4 in. sewer and drain, single-wall corrugated, and triple-wall pipes, and 4 in. Drain Waste Vent/Schedule 40 pipes. Pop-Up Emitter cap and cover made of high-density polyethylene (HDPE); Spee-D Catch Basin made of high-impact polystyrene (HIPS).
Applications
- Combine the 6 in. Pop-Up Drainage Emitter with the 6 in. Round Spee-D Catch Basin for a high-capacity emitter
- Install the Pop-Up Drainage Emitter at the lowest point in the drainage system; place in areas away from buildings, landscapes, and poor drainage areas
- Works with a complete drainage system to release collected stormwater runoff and standing water to a discharge point before it causes costly property damage
Features
- Spring-loaded cap on cover pops up as high as 1 in. once water pressure builds; automatically retracts when flow diminishes
- Outside flange prevents grass from growing over the cover
- Flat profile design reduces trip hazard posed by open drain; closed position keeps emitter flush to the ground and safe from lawn mower blades
NDS Drainage Grates Flow Capacities (pdf)
NDS Catch Basin & Grates Flow Capacities (pdf)
Tech Specs (pdf)
