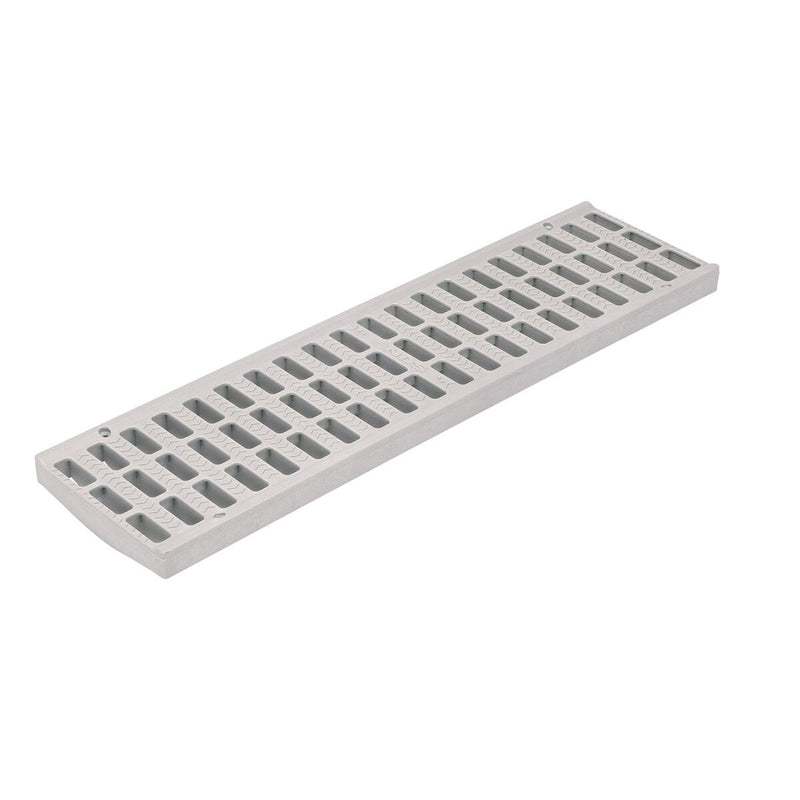

NDS 814 - 5" Pro Series Channel Grate - Gray

NDS grates are a proven alternative to traditional concrete drains with UV inhibitors are used to prevent fading and cracking from the sun, chemical-resistant, rustproof and maintenance-free, lightweight and easy to install. NDS has a full line of drainage products, fittings and accessories available.

NDS #814, 5" Wide Structural Foam Polyolefn light traffic channel grate with UV inhibitors. Open surface area 25.12 square inches per foot. 32.91 GPM per foot.

• Color: Light Gray
• Requires 4 Screws per Grate
• Requires #829 screws.
• Class B
• Loads of 61-175 psi.
• Recommended for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 m.p.h.
• Length 19.25
• Width 5.19 in.
• Height 3/4"
• Weight 1.1600

Technical Specifications (pdf)
