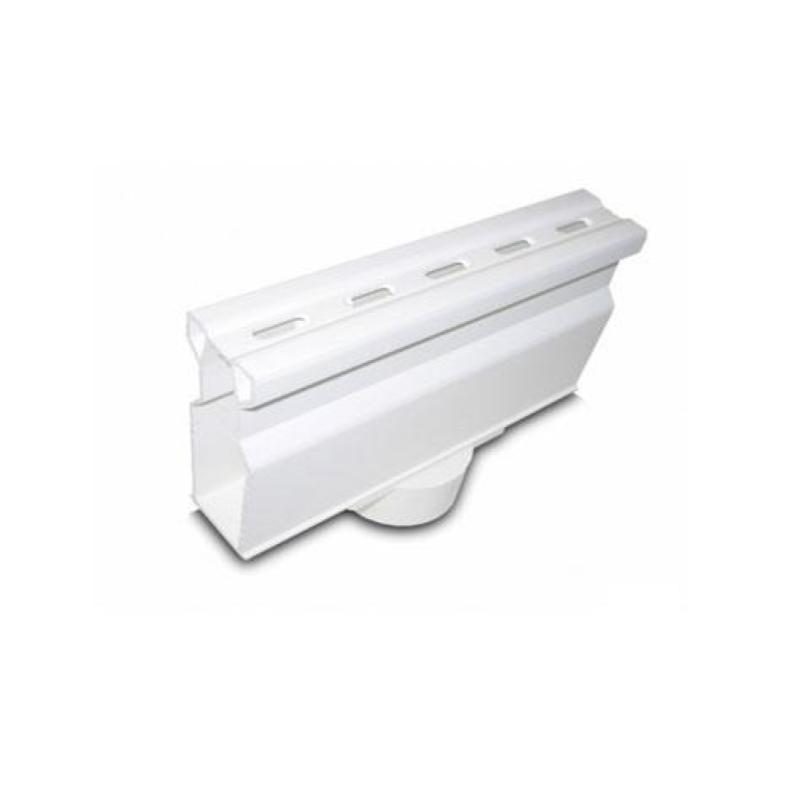

NDS 8501 - Micro Channel Spigot Bottom Outlet, White

NDS 8501 - Micro Channel Spigot Bottom Outlet, White

SKU 8501 NDS
Save 20% Save 20%
$26.44
$26.44 - $26.44
$26.44
$21.15
$21.15 - $21.15
$21.15
Availability:
11 in stock.
Return Policy

ALL RETURNS MUST HAVE PRIOR AUTHORIZATION

If you’re looking to return or exchange your order. we’re here to help! We accept returns within 30 days of delivery.

Learn more about exceptions and procedures regarding our Return & Refund Policy

Optimize your Micro™ Channel drainage system with outlets along the run. The Micro Channel Drain with Bottom Outlet comes as one integrated piece which includes channel, drain grate, and bottom outlet. Features a spigot which connects to 1-1/2 in. Sch. 40 pipe and hub which connects to 1-1/4 in. Sch. 40 pipe. Attaches to the Micro Channel Drain with a coupling. The Micro Channel Drain with Bottom Outlet is made of polyvinyl chloride (PVC) treated with UV inhibitors. Micro Channels are part of the NDS Profile Series™ Channel.

Applications
  • Collects and directs surface water to connected drain pipe
  • Works as part of the Micro Channel Drainage system to capture light flows from pool and spa areas, concrete and paver patios, and walkways
  • Use with the Micro Channel drainage system to collect and direct water to drain pipes for proper release downstream
Features
  • Drain, grate, and bottom outlet with spigot/hub pipe connection is one integrated part
  • Component connects Micro Channel Drain system to 1-1/4 in. & 1-1/2 in. Sch. 40 drain pipes and can be solvent-welded with PVC glue for a water-tight connection
  • Micro Channel Drain with Bottom Outlet is available in a variety of colors to complement your Micro Channel Drain system

Micro Channel Accessories Specs (pdf)
