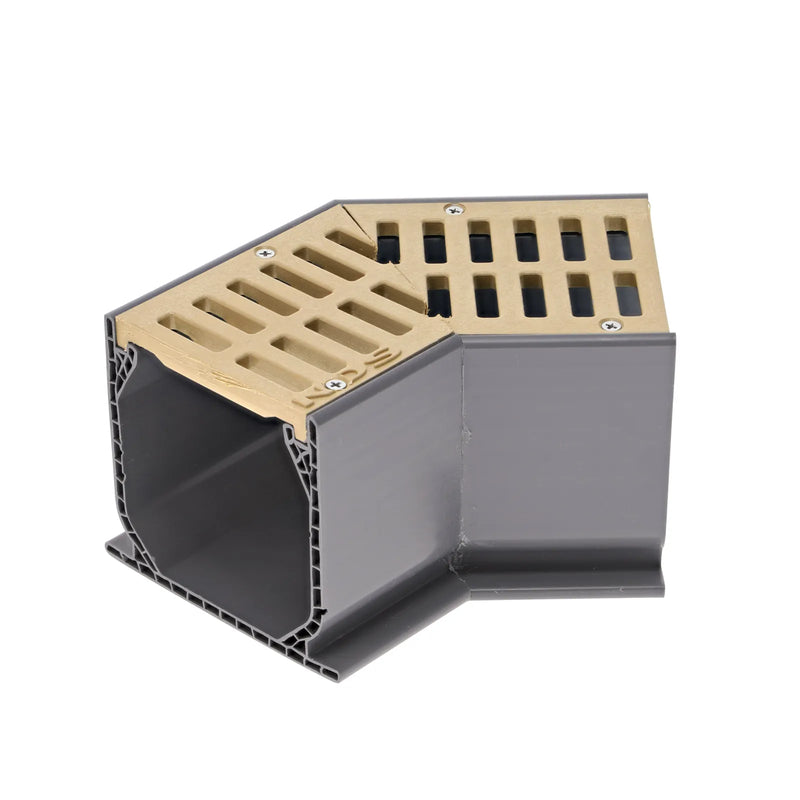

NDS 5303 - Mini Channel 45 Degree Elbow w/Grate - Sand
NDS 5303 - Mini Channel 45 Degree Elbow w/Grate - Sand

NDS 5303 - Mini Channel 45 Degree Elbow w/Grate - Sand

SKU 5303 NDS
Save 20% Save 20%
$50.38
$50.38 - $50.38
$50.38
$40.30
$40.30 - $40.30
$40.30
Availability:
5 in stock.

Mini™ Channel Drain 45° Elbow and Grate, Sand Plastic

Add a 45° bend to your Mini™ Channel drainage system with the Mini Channel Drain 45° Elbow and Grate. Convenient component saves time by eliminating the need to saw a straight channel drain and grate to miter an angled turn. Connect to the Mini Channel Drain system with a coupling. Removable snap-in grate makes it easy to clean inside the system. The Mini Channel Drain elbow is made of polyvinyl chloride (PVC) and the slotted grate is made of polypropylene (PP), both treated with UV inhibitors. Mini Channels are part of the NDS Profile Series™ Channel, and ideal for capturing light water flows from pool and spa areas, concrete and paver patios, tennis courts, walkways, and driveways.

Applications
  • Add a 45° bend to your Mini Channel drainage system; eliminate the need to saw a straight channel drain and grate to miter an angled turn
  • The Mini Channel Drain system collects light flows of water from pool & spa areas, concrete & paver patios, tennis courts, walkways, and driveways, and directs it to drain pipes for proper release downstream
  • Use with the Mini Channel Drain, part of the NDS Profile Channel series
Features
  • Mini Channel Drain elbow and grate have a 45° bend to make turns to left or right to customize layout
  • Mini Channel™ Drain 45° elbows and grates are available in a variety of colors

NDS Drainage Grates Flow Capacities (pdf)
Mini Channel Accessories (pdf)
Channel Drains, Grates and Accessories (pdf)
