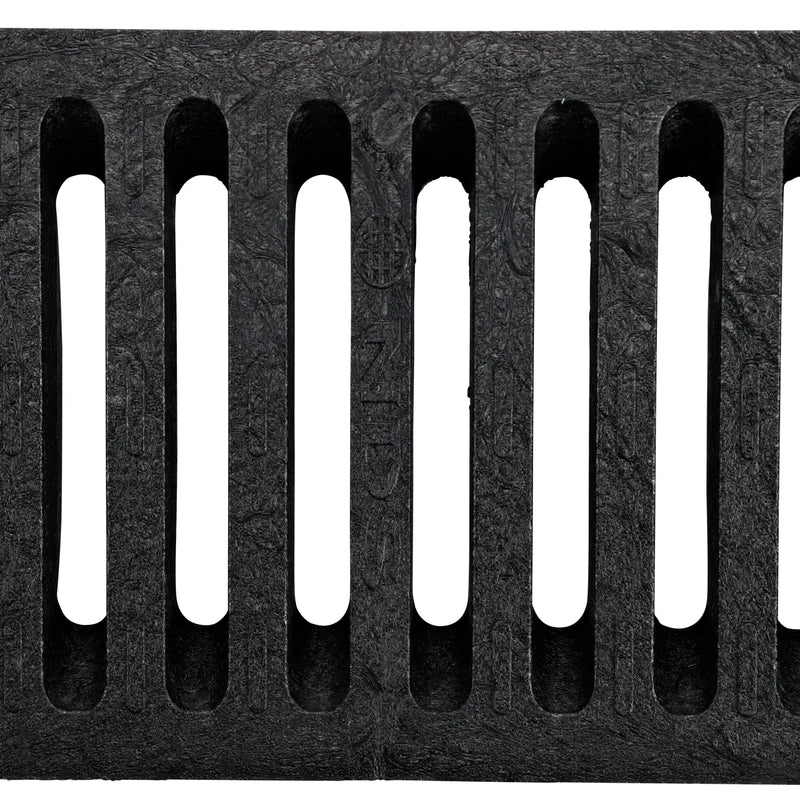

NDS 663 - Dura Slope Channel Grate, Black
NDS 663 - Dura Slope Channel Grate, Black
NDS 663 - Dura Slope Channel Grate, Black

NDS 663 - Dura Slope Channel Grate, Black

SKU 663 NDS
Save 20% Save 20%
$72.06
$72.06 - $72.06
$72.06
$57.65
$57.65 - $57.65
$57.65
Availability:
in stock.
Return Policy

ALL RETURNS MUST HAVE PRIOR AUTHORIZATION

If you’re looking to return or exchange your order. we’re here to help! We accept returns within 30 days of delivery.

Learn more about exceptions and procedures regarding our Return & Refund Policy

Protect your drainage system from clogging with the Dura Slope® Channel Drain Grate. The drain grate works with the Dura Slope Channel Drain to capture water flows from hardscapes while blocking leaves and debris in the water from entering the channel and potentially obstructing drain pipes. The drain cover has an open surface area of 25.40 sq. in. per linear ft. and flow rate of 27.00 GPM per linear ft. Made of high-density polyethylene (HDPE) containing UV inhibitors. Rated for NDS Class B loads (up to 175 PSI) when properly installed and ADA compliant.

Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Black Plastic
Use with Dura Slope Drains, Dura Slope Catch Basins.

Applications
  • Prevent leaves and debris from entering the channel drain and clogging the drainage system
  • Use with the Dura Slope Channel Drain to collect water flows from driveways, parking areas, warehouses, loading docks, pools, wash-down areas, and other impervious surfaces
  • As part of a complete drainage system, the Dura Slope channel drain and drain grate work together to capture stormwater runoff and convey it to drain pipe for proper release downstream
Features
  • Grate is 24 in. long, 6 in. wide and 3/4 in. high
  • Grate openings are 1/2 in. X 3-13/16 in.
  • Dura Slope Channel Drain Grates are available in a variety of materials, colors, and designs

Specifications (pdf)
