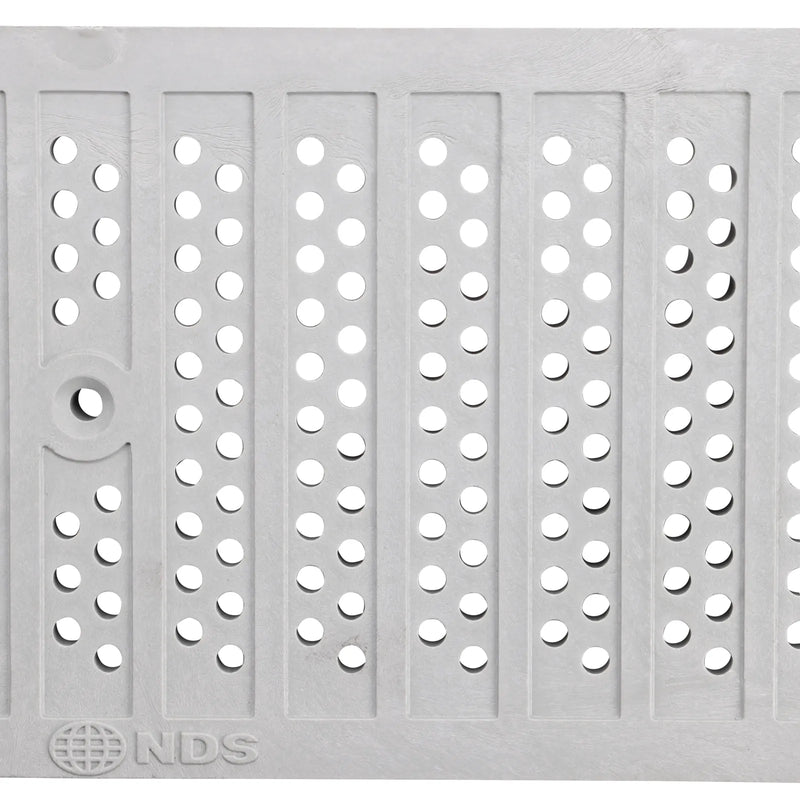

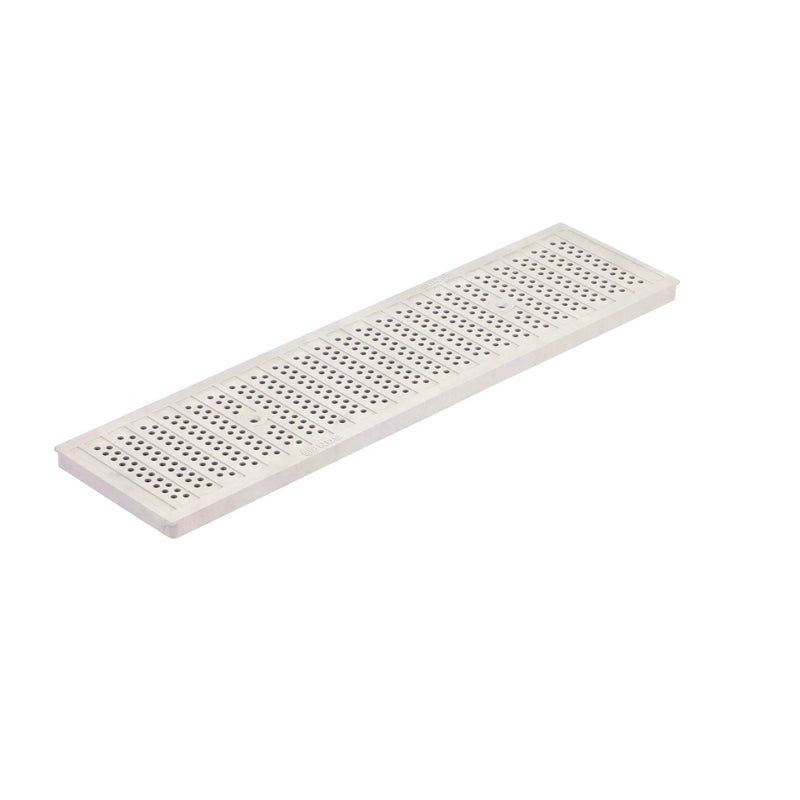

NDS DS-670 - Dura Slope Channel Grate, Gray Perforated
NDS DS-670 - Dura Slope Channel Grate, Gray Perforated
NDS DS-670 - Dura Slope Channel Grate, Gray Perforated

NDS DS-670 - Dura Slope Channel Grate, Gray Perforated

SKU DS-670 NDS
Save $8.60 Save $8.60
$66.25
$66.25 - $66.25
$66.25
$57.65
$57.65 - $57.65
$57.65
Available by Request

Limited Availability OR Special Order Item: "Request a quote"

We will ensure product availability, include pricing and email a Draft Order for your review.

* NOTE PICKUP OR DELIVERY?  If you need a shipping cost, be sure to include your shipping address and contact number.

Request a quote

Prevent leaves and debris from clogging the drainage system by putting the Dura Slope® Channel Drain Grate in place. The drain grate is used with the Dura Slope Channel Drain to collect water flows from impervious surfaces while keeping leaves and debris in the water from entering the channel and potentially blocking drain pipes. The perforated grate is heel-proof and ADA compliant. Also known as a drain cover, it features an open surface area of 8.75 sq. in. per linear ft. and flow rate of 26.77 GPM per linear ft. Made of high-density polyethylene (HDPE) containing UV inhibitors. Rated for NDS Class B loads (up to 175 PSI) when properly installed.

Applications
  • Prevent leaves and debris from entering the channel drain and clogging the drainage system

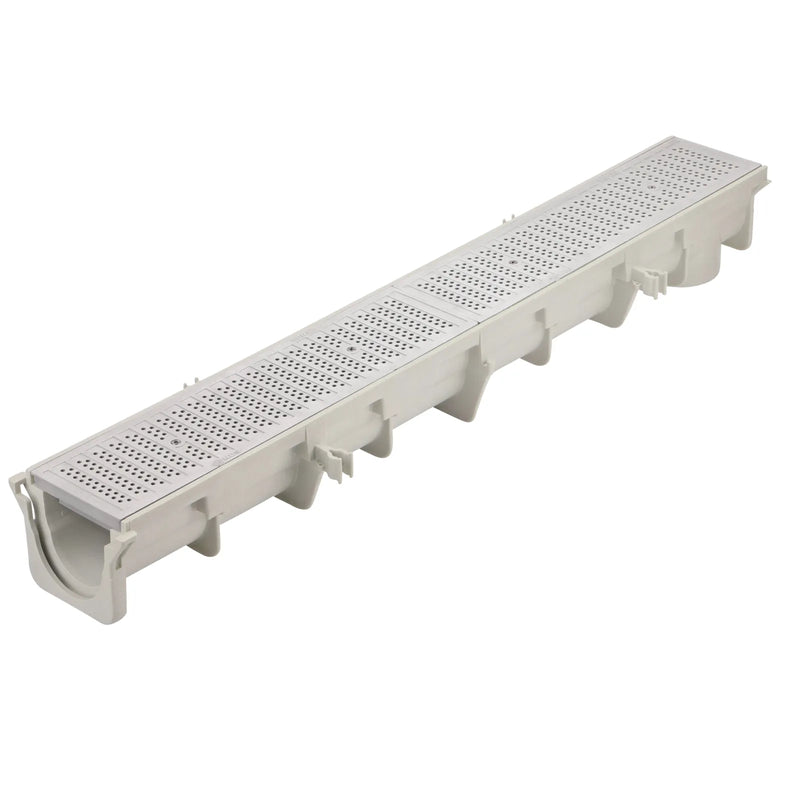

  • Use with the Dura Slope Channel Drain to collect water flows from driveways, parking areas, warehouses, loading docks, pools, wash-down areas, and other impervious surfaces
  • As part of a complete drainage system, the Dura Slope channel drain and drain grate work together to capture stormwater runoff and convey it to drain pipe for proper release downstream
Features
  • Grate is 24 in. long, 6 in. wide and 3/4 in. high
  • Grate openings are 1/4 in
  • Dura Slope Channel Drain Grates are available in a variety of materials,

Dura Slope Gray 2 ft. Plastic Perforated Channel Grate
Use with Dura Slope Drains, Dura Slope Catch Basins.

(ADA Compliant / Heel Proof)
(24"Lx 6"W x 3/4"D) Flow=12.2gpm/lft. 3.0 lbs

SPECIFICATION:
MATERIAL: UV PROTECTED STRUCTURAL FOAM POLYOLEFIN 6” x 24” x 3/4”
LOAD CLASS B—LOADS OF 61-175 PSI. RECOMMENDED FOR MEDIUM DUTY PNEUMATIC TIRE TRAFFIC,
AUTOS AND LIGHT TRUCKS AT SPEEDS LESS THAN 20 M.P.H.
REQUIRES (2) FH #1/4-20 X 1-1/2” SCREWS #629 (SUPPLIED WITH CHANNEL)
FITS ALL DURA SLOPE CHANNEL SECTIONS AND IN-LINE CATCH BASIN (DS-340)
—2 GRATES PER 4 FT CHANNEL

Specifications (pdf)
