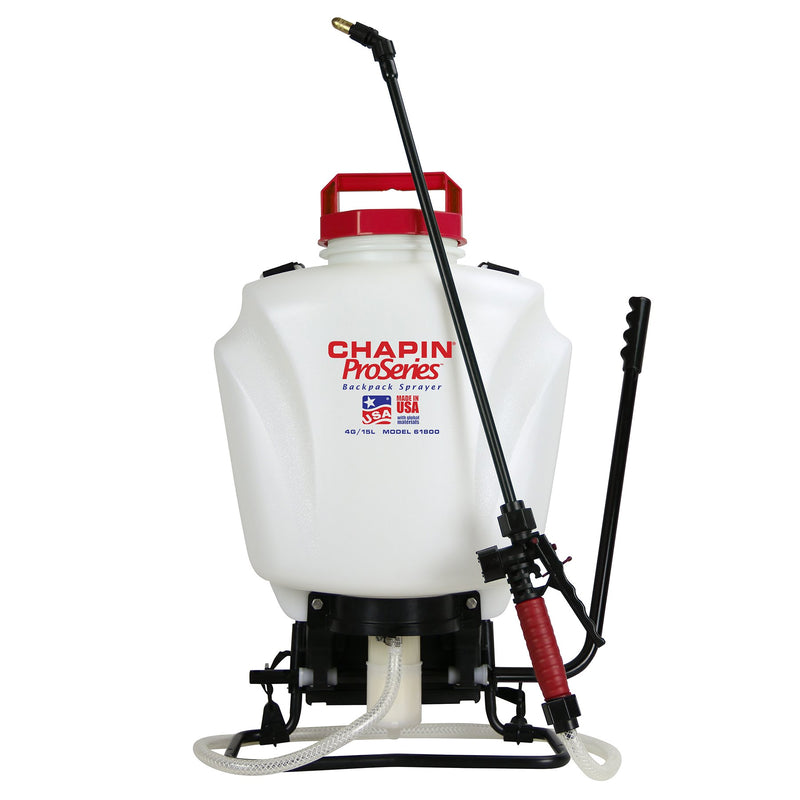

Chapin 61800 4-Gallon ProSeries Backpack Sprayer
- 4-gallon translucent tank
- 5" wide mouth opening for easy filling and cleaning
- Compatible with common fertilizers, weed killers and pesticides

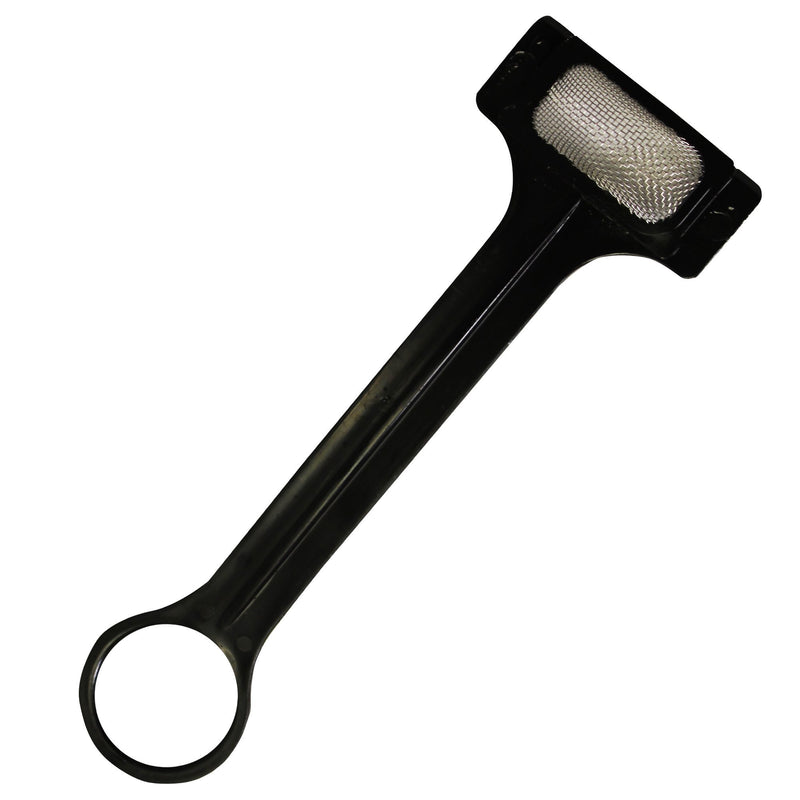

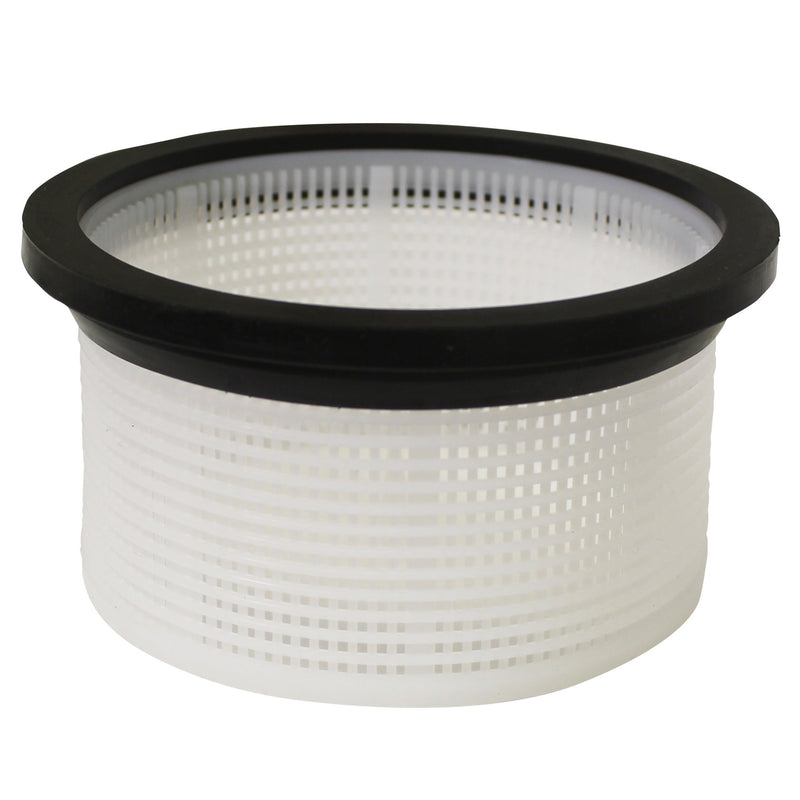

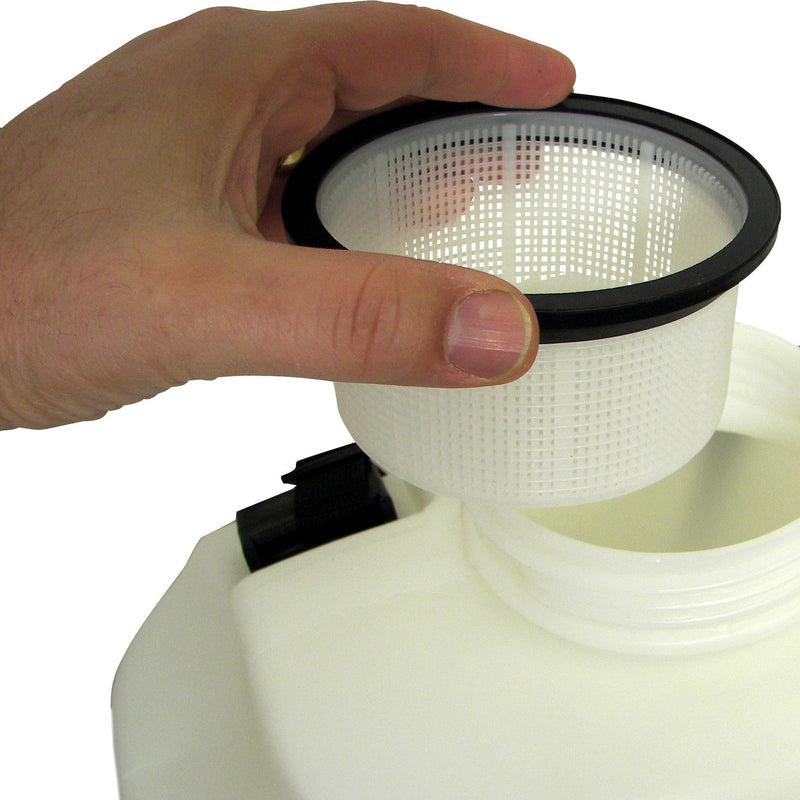

- 3-Stage filtration system with in-tank removable/cleanable filter
- Cushion grip poly shut-off and brass nozzle
- 3 piece nozzle kit for a variety of applications
- Padded shoulder straps to accommodate a full backpack for hours
Applications
- General Purpose Cleaning
- Fertilizers
- Weed & Feed
- Fungicides
- Herbicides
- Pesticides
Can be used for disinfection only when using a diluted mixture of bleach per the CDC guidelines. CDC states: 5 tbsp (1/3 C) of bleach per gallon of room-temperature water or 4 tsp of bleach per quart of room-temperature water.
Chapin 61800 Product Manual
Technical Specs
| Model Number | 61800 |
| Tank Size | 4-gallon |
| Tank Mouth Opening | 5-inches |
| Tank Construction | poly |
| Pump Type | piston |
| Hose Length | 48-inches |
| Hose Material | clear reinforced |
| Shut-Off Material | poly cushion-grip |
| Anti-Siphon Feature | N/A |
| Shoulder strap | padded shoulder straps |
| Battery Type | N/A |
| Spray Hours | N/A |
| Warranty | 2-Year limited |
| Spray/Flow Rate (GPM) | .4-.5 gpm |
| Nozzle(s) | adjustable brass cone, poly-fan, poly-cone, |
| Filters | 3-stage |
| Frame | powder-coated steel |
| CFV | N/A |
| Handle | right or left mount |
| Shipping Weight In Pounds | 10.5 |
| Package Dim. In. (LxWxH) | 15.0 x 9.25 x 22.15 |
| Item Dim. In. (LxWxH) | 14.75 x 9.0 x 21.9 |
| Item Weight In Pounds | 10.5 |
| Pressure relief valve | N/A |
| Extension Wand Material | poly |
| PSI - Operating Pressure | 40-60 psi |
| Motor Size | N/A |
|
Spray Stream Max Vertical
|
23-feet
|
|
Spray Stream Max Horiz.
|
25-feet
|
*Spray distance is dependent on many factors such as adjusted nozzle orifice size, tank pressure, wind interference and angle of inclination. Spray distances may vary based on user's specific application.
