Nitro Series Valves
Durable Material
Easy Access Cover
Unmatched Manual Bleed
Shocking Shock Cone


  • 2 year trade warranty and 100% water tested
  • 150 PSI (10.3 BAR) rating
  • Unique “reverse flow” design permits equal pressure distribution on both sides of the diaphragm, regardless of line pressure, providing zero stress to prevent “stretching,” a common cause of valve failure
  • Reverse flow design for water conservation in the event of failure
  • Diaphragm’s self cleaning ports constantly flex, inhibiting sand and silt from blocking valve action
  • Molded shock cone for smooth operation and reduction of water hammer
  • Easy-to-use internal manual bleed lever; bleeds valve downstream; has positive stops for open and closed positions
  • Marine-grade S20P solenoid with stainless steel actuator
  • Engineering grade PVC body and Phillips retaining screws
  • Non-rising flow control stem throttles valve from full open to closed position on flow control models


Click to view

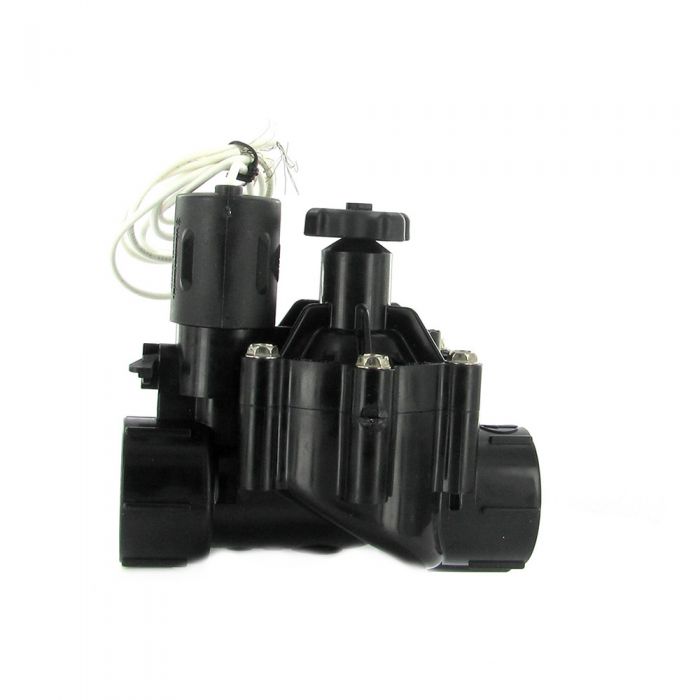

1” Valve – Slip x Slip

4.88” L x 3.25″ W x 5″ H
(12.40 cm x 8.23 cm x 12.7 cm)

Flow Range
0.2 to 35 GPM (0 to 8.5 m3/hr)

Inrush: 9.48 V, Holding: 5.11 VA
Inrush: 10.66 VA, Holding: 5.97 VA
