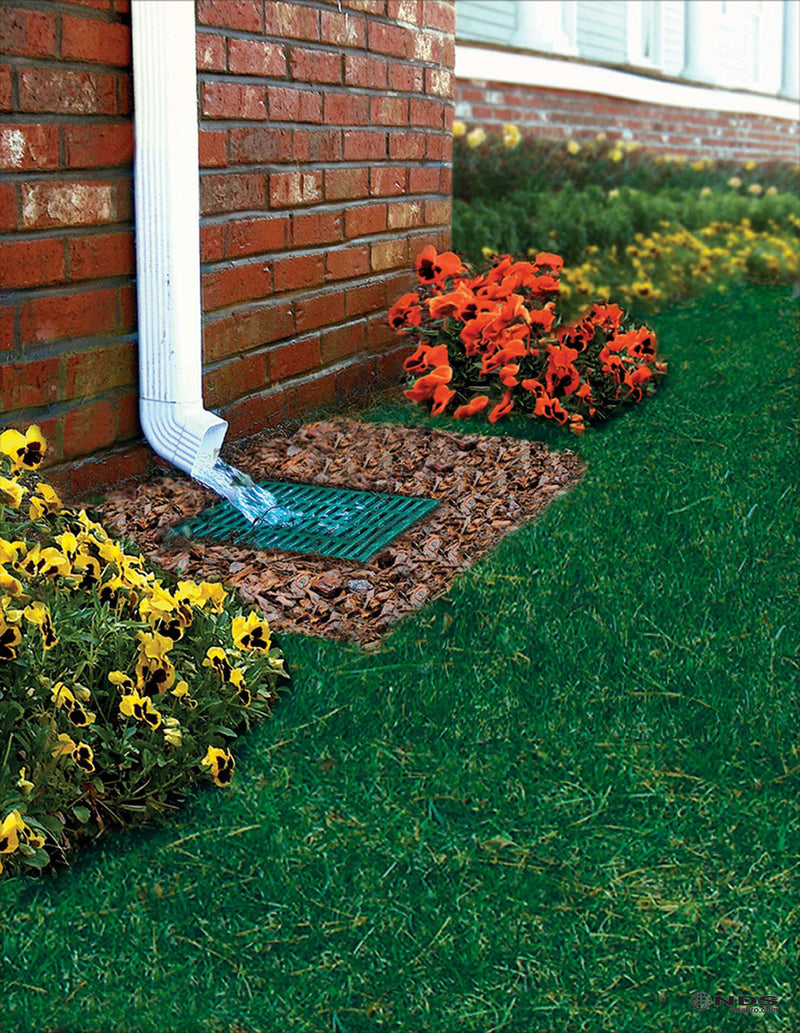

Drain excess stormwater flooding lawns, patios, and landscaping before it lingers and leads to costly property damage. The 12 in. Square Catch Basin Drain Kit is ideal for handling heavy flows from lawns and landscaped areas, under downspouts, as well as patios and walkways.

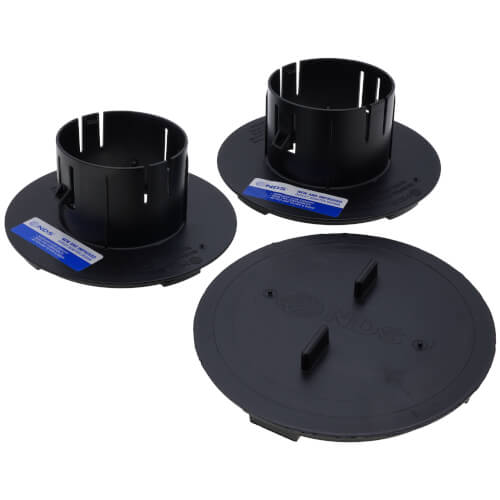

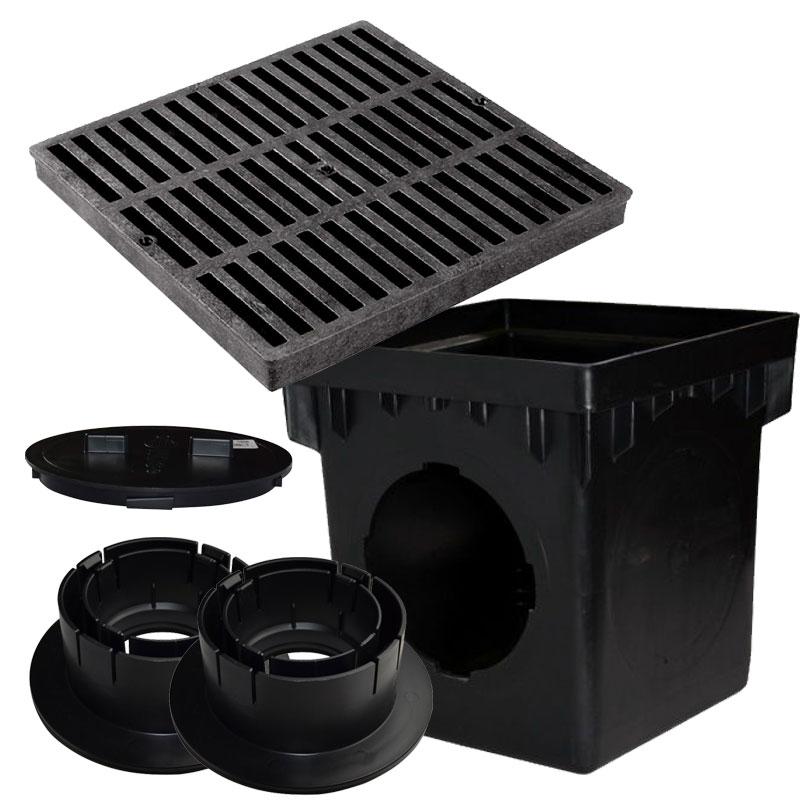

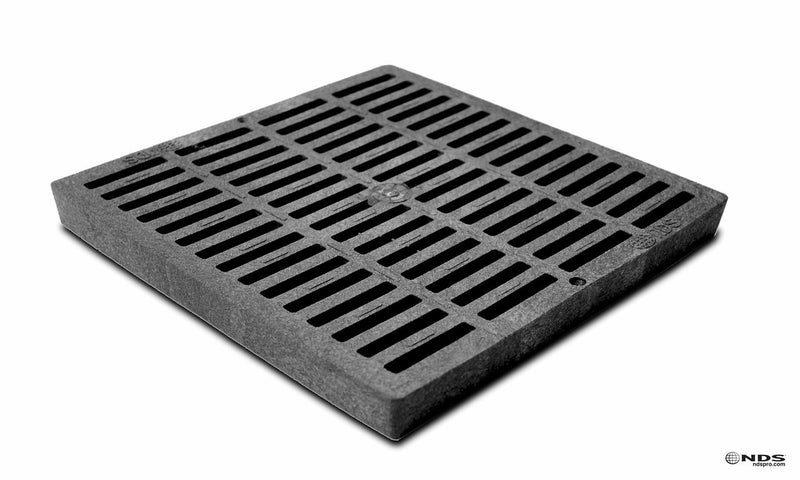

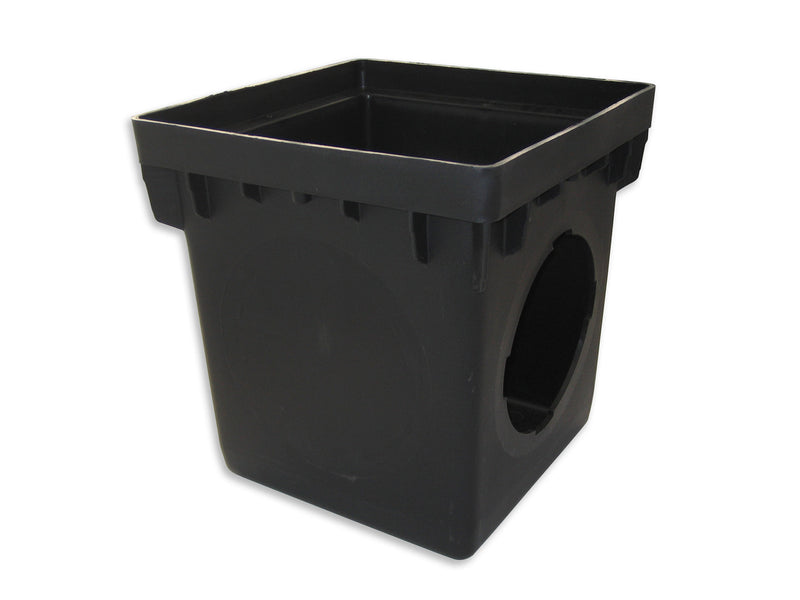

Kit includes a 2-opening catch basin drain, 1 square drain grate (also known as a drain cover), 2 locking outlet adapters, and 1 outlet plug.
Catch basin connects to 3 in. & 4 in. sewer and drain, single-wall corrugated, triple-wall, and DWV/Sch. 40 pipes using the included locking outlet adapters. Polypropylene (PP) basin and high-density polyethylene (HDPE) grate are treated with UV inhibitors. Built-in sump is easy to access and clean.

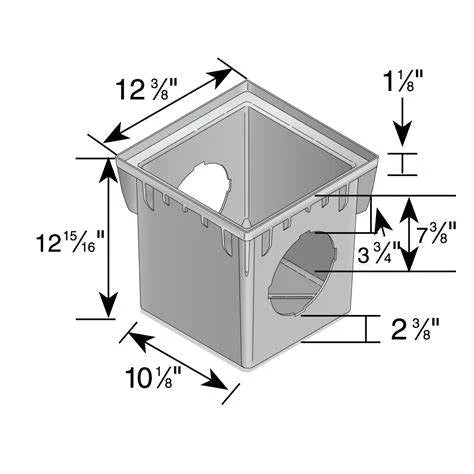

Dimension(s): 12-3/8" L x 12-3/8" W x 12-15/16" H.
Part of NDS 12" Pro Catch Basin Series.
Product Details
Part number 1200BLKIT
- Collects excess surface water from lawn, landscape, residential driveways and garages
- Suitable for light vehicular traffic when properly installed
- Suitable for both landscape and hardscape applications
- Ablility to withstand normal abuse in landscaping applications
- sump area collects debris and helps prevent clogged pipes
- 5 psi maximum working pressure
- Fade & rust resistant
- Lightweight
- Easy to install
Videos
How do I protect my drainage system? With a NDS Catch Basin Filter
NDS Drainage Systems: How to fix your downspout problem
How do I prevent water from puddling in my planter area? NDS Yard Drainage Systems
How do I choose the right size catch basin for my drainage system?
S5 Sustainable stormwater Solutions
Technical Information
Specifications Sheets: 12" Square Catch Basin 1200BKIT 1200 1203 1204
CAD Details: 12" Square Catch Basin Typical Installation for Landscape Applications
CAD Details: 12" Square Catch Basin Typical Installation for Pedestrian and Light Vehicular Traffic Application, Load Case A and B
CAD Details: 12" Square Catch Basin Typical Installation for Vehicular Traffic Application Load Case C
CAD Details: 12" Square Catch Basin with Riser Installation for Landscape Applications 1
