NDS DS-671 - Dura Slope Channel Grate, White Perforated

SKU DS-671
Save 26% Save 26%
Original price $73.99
Original price $73.99 - Original price $73.99
Original price $73.99
Current price $54.95
$54.95 - $54.95
Current price $54.95
Request a quote

Limited Availability OR Special Order Item: Use the "Request a quote" drop-down form above to email product support.

We will ensure product availability, include pricing and email a Draft Order for your review.

* NOTE PICKUP OR DELIVERY? If you need a shipping cost, be sure to include your shipping address and contact number.

Applications
  • Prevent leaves and debris from entering the channel drain and clogging the drainage system
  • Use with the Dura Slope Channel Drain to collect water flows from driveways, parking areas, warehouses, loading docks, pools, wash-down areas, and other impervious surfaces
  • As part of a complete drainage system, the Dura Slope channel drain and drain grate work together to capture stormwater runoff and convey it to drain pipe for proper release downstream
Features
  • Grate is 24 in. long, 6 in. wide and 3/4 in. high

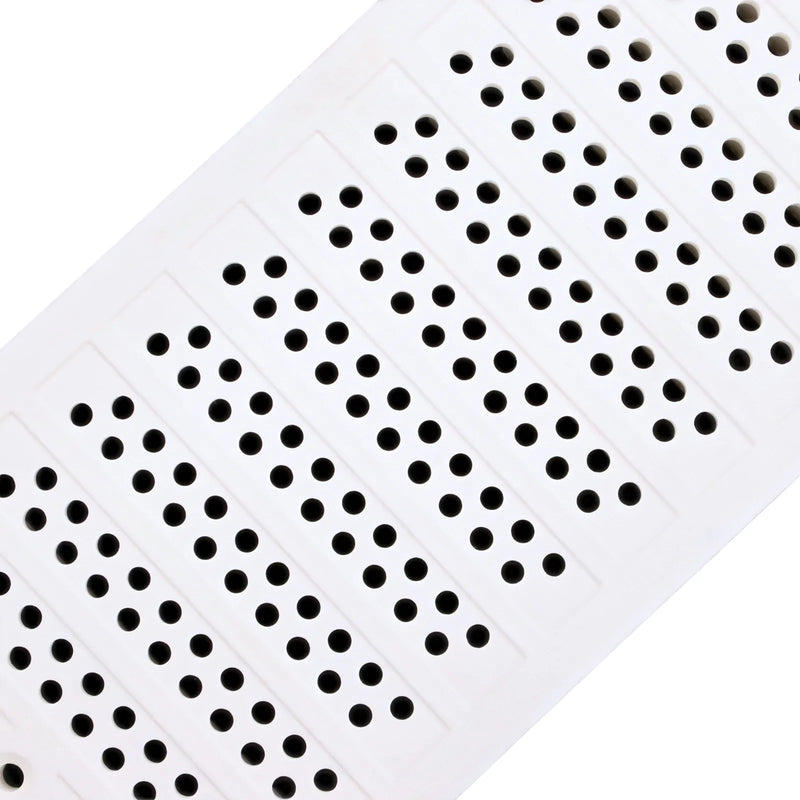

  • Grate openings are 1/4 in
  • Dura Slope Channel Drain Grates are available in a variety of materials,

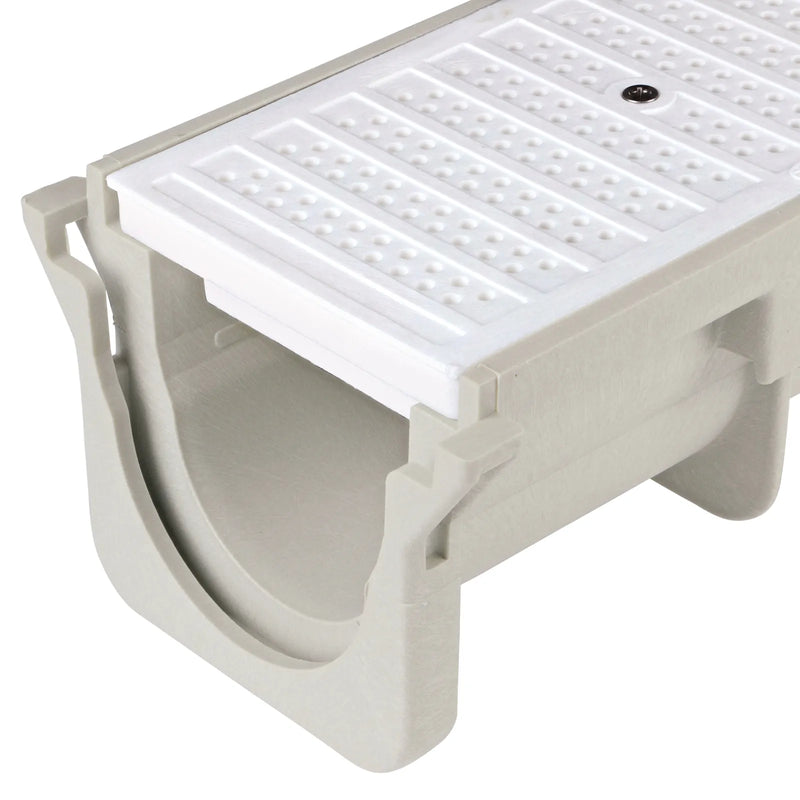

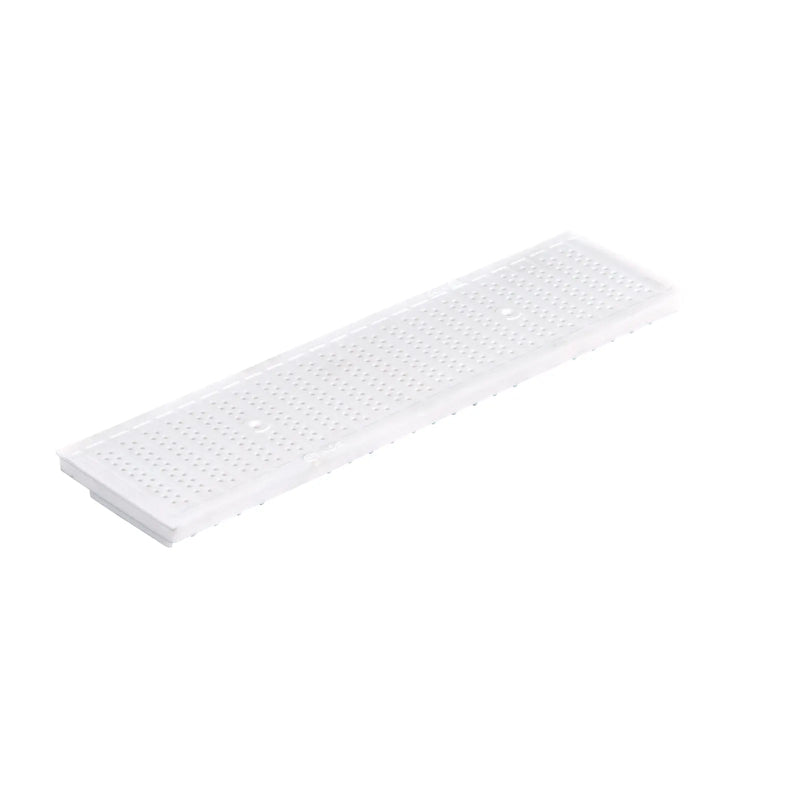

Dura Slope White 2 ft. Plastic Perforated Channel Grate
Use with Dura Slope Drains, Dura Slope Catch Basins.

(ADA Compliant / Heel Proof)
(24"Lx 6"W x 3/4"D) Flow=12.2gpm/lft. 3.0 lbs

SPECIFICATION:
MATERIAL: UV PROTECTED STRUCTURAL FOAM POLYOLEFIN 6” x 24” x 3/4”
LOAD CLASS B—LOADS OF 61-175 PSI. RECOMMENDED FOR MEDIUM DUTY PNEUMATIC TIRE TRAFFIC, AUTOS AND LIGHT TRUCKS AT SPEEDS LESS THAN 20 M.P.H.
REQUIRES (2) FH #1/4-20 X 1-1/2” SCREWS #629 (SUPPLIED WITH CHANNEL)
FITS ALL DURA SLOPE CHANNEL SECTIONS AND IN-LINE CATCH BASIN (DS-340) —2 GRATES PER 4 FT CHANNEL

Specifications (pdf)
