NDS Dura Slope Kit with DS-670 Light Gray HDPE Pedestrian Grate

SKU DSKIT-670-04
Original price $290.00 - Original price $3,020.00
Original price
$290.00
$290.00 - $3,020.00
Current price $290.00

| Store Pickup Only | Ship to Commercial Address |

Availability:
in stock.
Availability:
in stock.
Availability:
in stock.
Availability:
Out of stock
Availability:
in stock.
Availability:
Out of stock
Availability:
Out of stock
Availability:
in stock.
Availability:
Out of stock
Availability:
Out of stock
Availability:
in stock.
Availability:
Out of stock

Additional information

| Returns | Shipping |

The 6″ Dura Slope by NDS® is one of the most customizable plastic trench drains available for commercial projects. A lightweight HDPE drainage system, NDS® Dura Slope sets high standards for chemical and load resistance.  Its four-foot modular channel sections offer 0.7% slope with rounded bottom, creating an efficient water evacuation route for any application.  Each channel has a 4″ bottom outlet knockout that provides a greater degree of design variability for the drainage system.

Dura Slope™ channels are designed with the Pre-installed ProFit™ locking system, which maintains structural integrity during installation and locking devices for the grating. LeveLoc™ integral re-bar supports are located at 24” intervals along each side of the channel and contain an internal protruding knob designed to grip #3 or #4 rebar (3/8” – 1/2”) for easier channel height adjustment during installation. DuraLoc™ tongue and groove ends connect allowing for a precise fit and ensure straight channel runs, incorporating an integral snap-lock feature that prevents joint movement during channel installation.

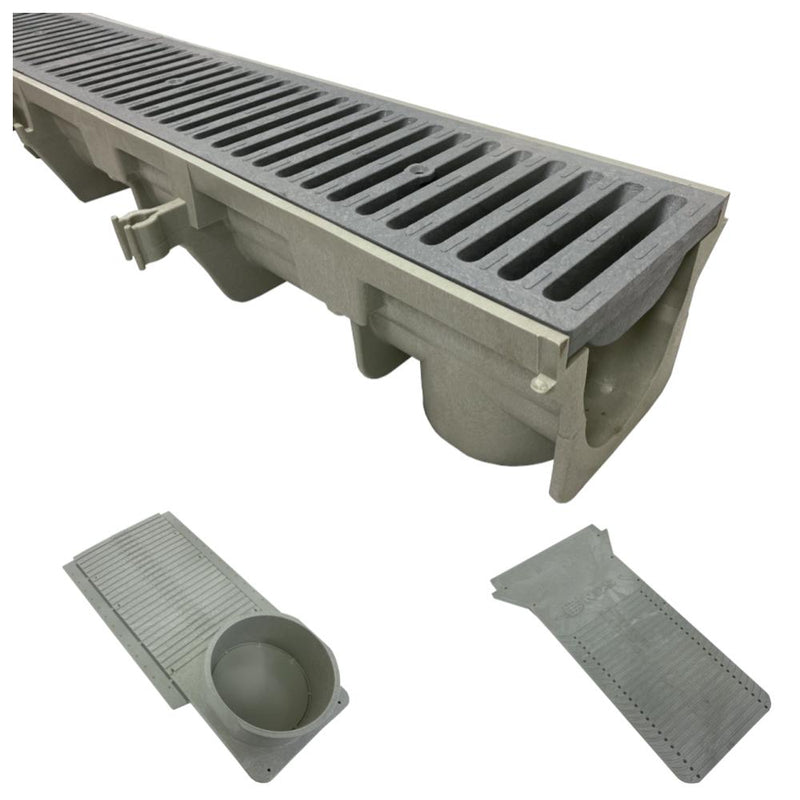

6" Wide NDS Duraslope HDPE Pedestrian Grate Trench Drain Kit

Dura Slope Channel Drain – Pre-sloped channel drain is an effective solution for driveways, sports facilities, parking areas, warehouses, loading docks and pools.

NDS Pre-Sloped Trench Drain

6 Inch Wide - HDPE Perforated Grate (Heel Proof and ADA Compliant)

2 ft. Structural Foam Polyolefin, secured Channel Grate with UV inhibitor. Open surface area 25.40 square inches per foot. 77.70 GPM per foot.

This Complete Trench Drain Kit Includes:

  • 1 - 48" Long Section per 4' Kit Ordered
  • 2 - 24" Long B Class ADA HDPE Perforated Grates per channel
  • 1 - End Cap with 4" Outlet
  • 1 - Solid End Cap

NOTE : Dura Slope Kits over 70 lbs. ships via Common Carrier LTL, Commercial address required, must be present to receive order.

Downloads:

Delivers Via LTL Tractor & Trailer

This item delivers via Tractor & Trailer.

  • A commercial address is required
  • Requires someone to be present at time of delivery
  • A forklift is required for unloading.
  • Unconfirmed commercial addresses are subject to an additional minimum $100 residential delivery fee

Indicate in Order Notes at time of checkout if you require a lift gate truck for delivery.

This item is a NDS factory-direct item. The following Return Policy applies:

Request must be submitted within 30 days of receiving product.

Product must be in resale condition including packaging.

The item(s) must be clean. (dirty products will not be accepted).

Item does not show signs of wear or damage in any way.

Customer pays return freight (ships back carrier of their choice- Master Landscape Supply does not pick up)

Product must arrive in resalable condition

Special Made to Order parts and EZ-Flow material is non-returnable

25% restock fee applied

Customer must provide the following:

* PO#. Sales or invoice# product was purchased on

* NDS part number

* Quantity

* Reason for request
