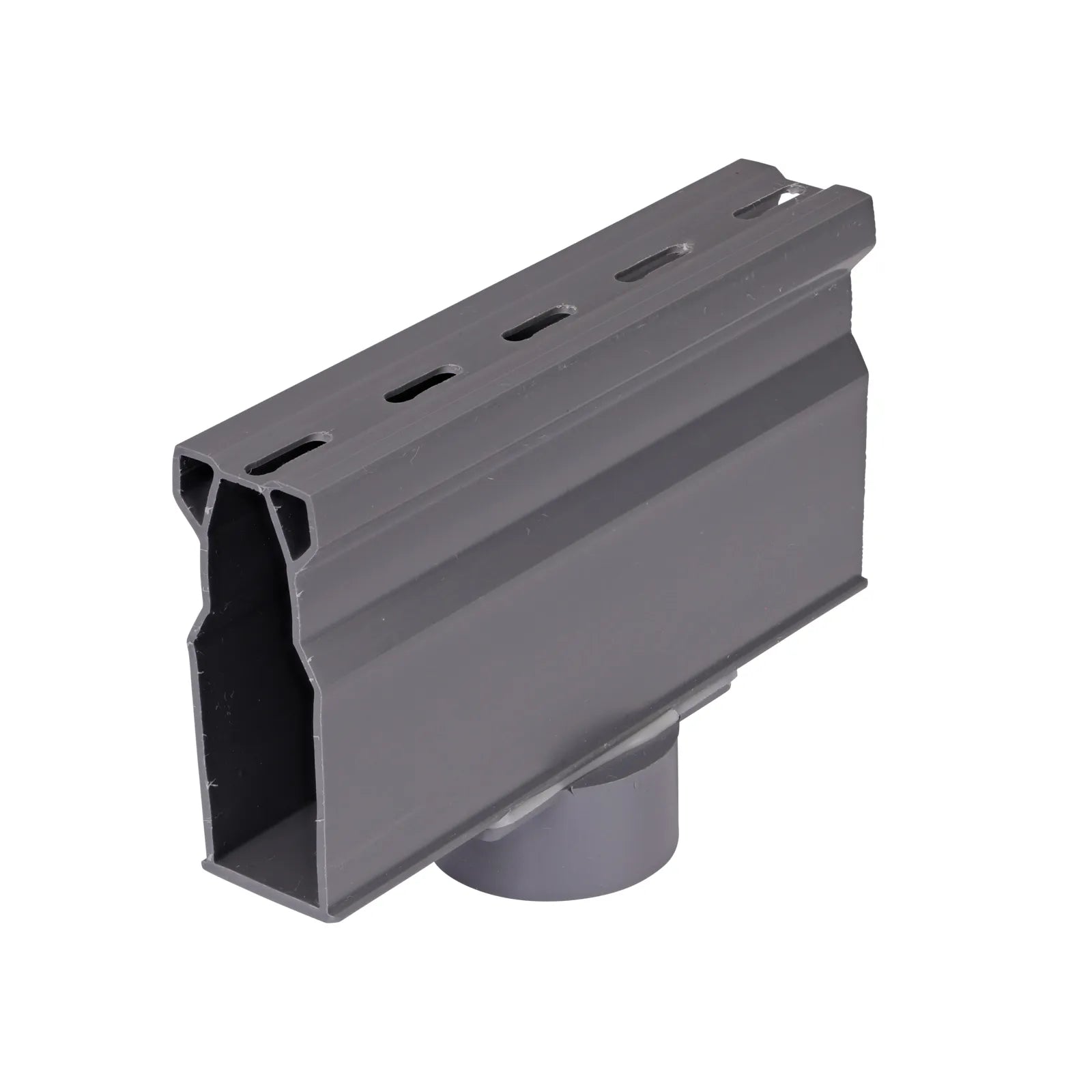

NDS 8503 - Micro Channel Spigot Bottom Outlet, Gray

NDS 8503 - Micro Channel Spigot Bottom Outlet, Gray

$22.40 USD
$28.00 USD $22.40 USD
Sale Sold out
Shipping calculated at checkout.

Optimize your Micro™ Channel drainage system with outlets along the run. The Micro Channel Drain with Bottom Outlet comes as one integrated piece which includes channel, drain grate, and bottom outlet. Features a spigot which connects to 1-1/2 in. Sch. 40 pipe and hub which connects to 1-1/4 in. Sch. 40 pipe. Attaches to the Micro Channel Drain with a coupling. The Micro Channel Drain with Bottom Outlet is made of polyvinyl chloride (PVC) treated with UV inhibitors. Micro Channels are part of the NDS Profile Series™ Channel.

Applications
  • Collects and directs surface water to connected drain pipe
  • Works as part of the Micro Channel Drainage system to capture light flows from pool and spa areas, concrete and paver patios, and walkways
  • Use with the Micro Channel drainage system to collect and direct water to drain pipes for proper release downstream
Features
  • Drain, grate, and bottom outlet with spigot/hub pipe connection is one integrated part
  • Component connects Micro Channel Drain system to 1-1/4 in. & 1-1/2 in. Sch. 40 drain pipes and can be solvent-welded with PVC glue for a water-tight connection
  • Micro Channel Drain with Bottom Outlet is available in a variety of colors to complement your Micro Channel Drain system

Micro Channel Accessories Specs (pdf)
