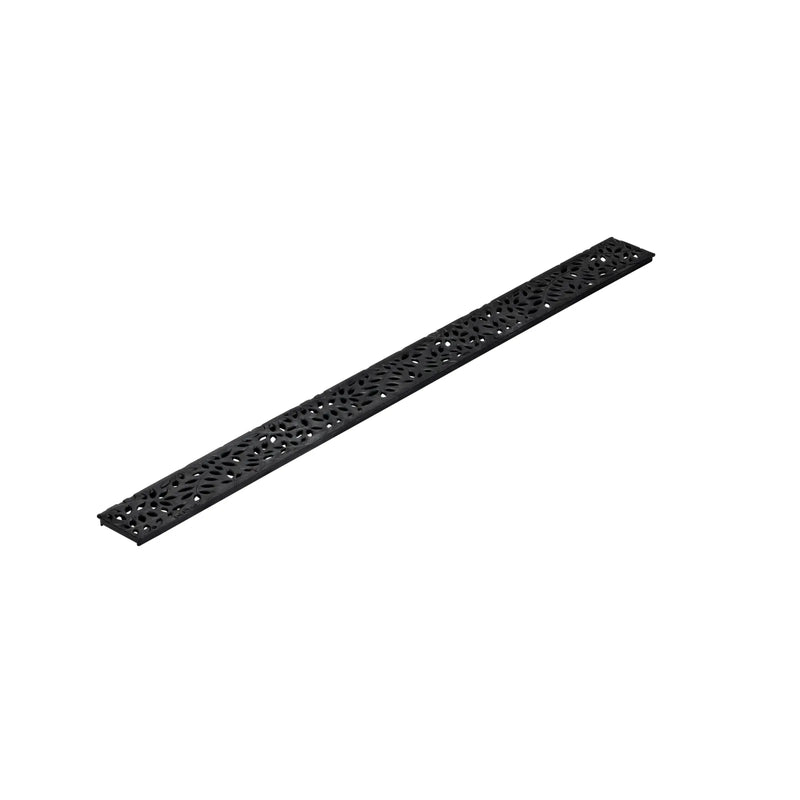

NDS 554 - Mini Channel Decorative Botanical Grate - Black
Mini™ Channel Drain Grate, 3-1/12 in. wide X 3 ft. long, Decorative Botanical Design, Black Plastic
Drain the stormwater, not the debris with a decorative grate that enhances the look of your outdoor space. The Mini™ Channel Drain Grate blocks leaves and debris from entering and clogging drain pipes as water passes though grate openings in a stylish botanical design. Works with the Mini Channel Drain for draining light flows from pool & spa decks, concrete & paver patios, tennis courts, walkways, and driveways. The Mini Channel Drain Grate is made of polypropylene (PP) treated with UV inhibitors. Mini Channels are part of the NDS Profile Series™ Channel.
- Actual dimension 3.08"W x 36"L x .524"H
- Requires 4 #846 Screws
- High Density Polyethylene (HDPE) Grate
- Open surface area 5.73 square inches per lineal foot
- 17.54 GPM per minute per lf with 1/2" of head
- ADA Compliant
- Recommended for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 mph
- Class B Load Rating: 61-175 psi
Applications
- Prevent leaves and debris from entering the channel drain or trench drain and clogging the drainage system
- Mini Channel Drain Grate in plastic works with the Mini Channel system to drain light flows of water from pool & spa areas, concrete & paver patios, tennis courts, walkways, and driveways

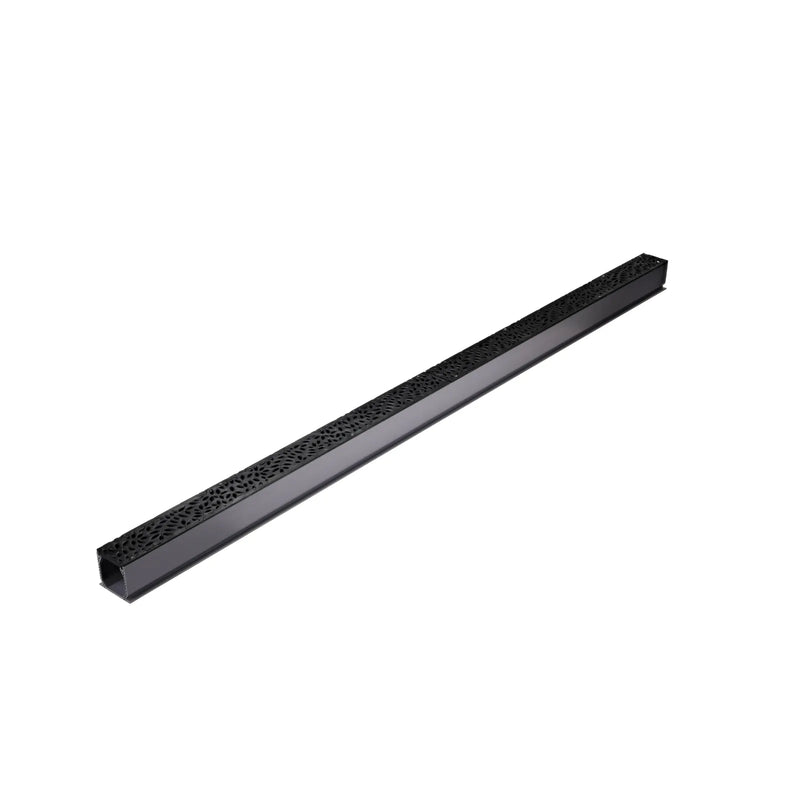

- Use with the Mini Channel Drain, part of the NDS Profile Channel series
Features

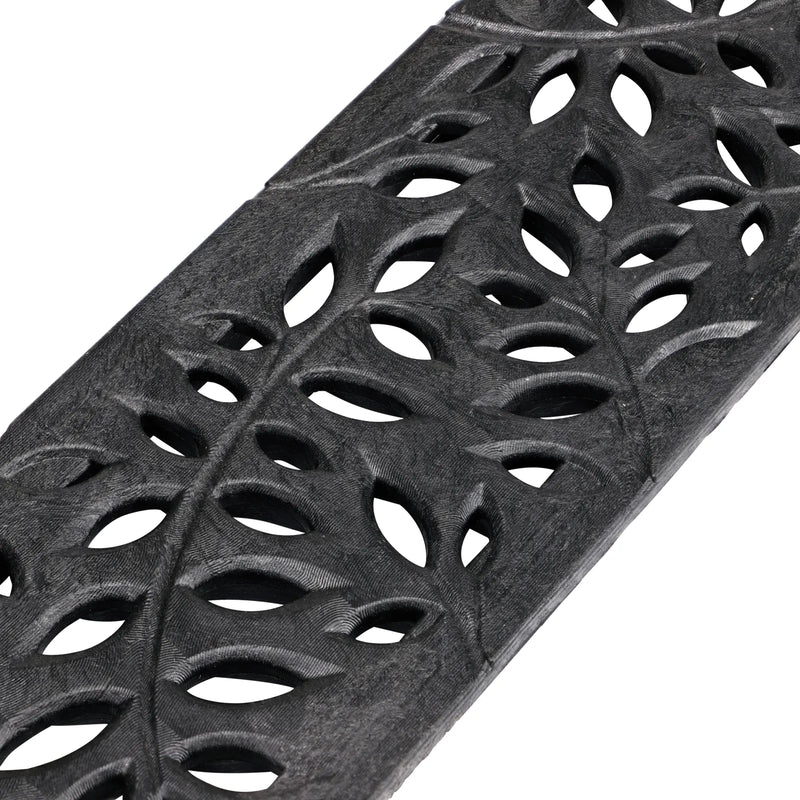

- Decorative grate features a “T” top design which overlaps the channel edge for a stylish effect
- Mini Channel Drain Grates, also known as drain covers, are available in a variety of colors, decorative styles, and materials
