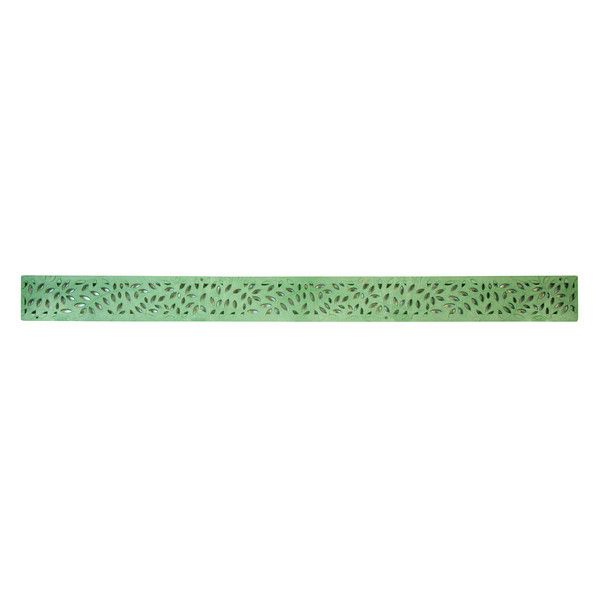

NDS 554GR - Mini Channel Decorative Botanical Grate - Green

NDS 554GR - Mini Channel Decorative Botanical Grate - Green

SKU 554GR NDS

Save 30% Save 30%
$35.56
$35.56 - $35.56
$35.56
$25.00
$25.00 - $25.00
$25.00
Request a quote

Limited Availability OR Special Order Item: Use the "Request a quote" drop-down form above to email product support.

We will ensure product availability, include pricing and email a Draft Order for your review.

* NOTE PICKUP OR DELIVERY? If you need a shipping cost, be sure to include your shipping address and contact number.

NDS 3" x 36" Decorative Botanical Grate - Green (discontinued with inventory)

  • Actual dimension 3.08"W x 36"L x .524"H
  • Requires 4 #846 Screws
  • High Density Polyethylene (HDPE) Grate
  • Open surface area 5.73 square inches per lineal foot
  • 17.54 GPM per minute per lf with 1/2" of head
  • ADA Compliant
  • Recommended for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 mph
  • Class B Load Rating: 61-175 psi
Applications
  • Prevent leaves and debris from entering the channel drain or trench drain and clogging the drainage system
  • Mini Channel Drain Grate in plastic works with the Mini Channel system to drain light flows of water from pool & spa areas, concrete & paver patios, tennis courts, walkways, and driveways
  • Use with the Mini Channel Drain, part of the NDS Profile Channel series
Features
  • Decorative grate features a “T” top design which overlaps the channel edge for a stylish effect
  • Mini Channel Drain Grates, also known as drain covers, are available in a variety of colors, decorative styles, and materials

NDS Drainage Grates Flow Capacities (pdf)
Mini Channel Accessories (pdf)
Channel Drains, Grates and Accessories (pdf)
