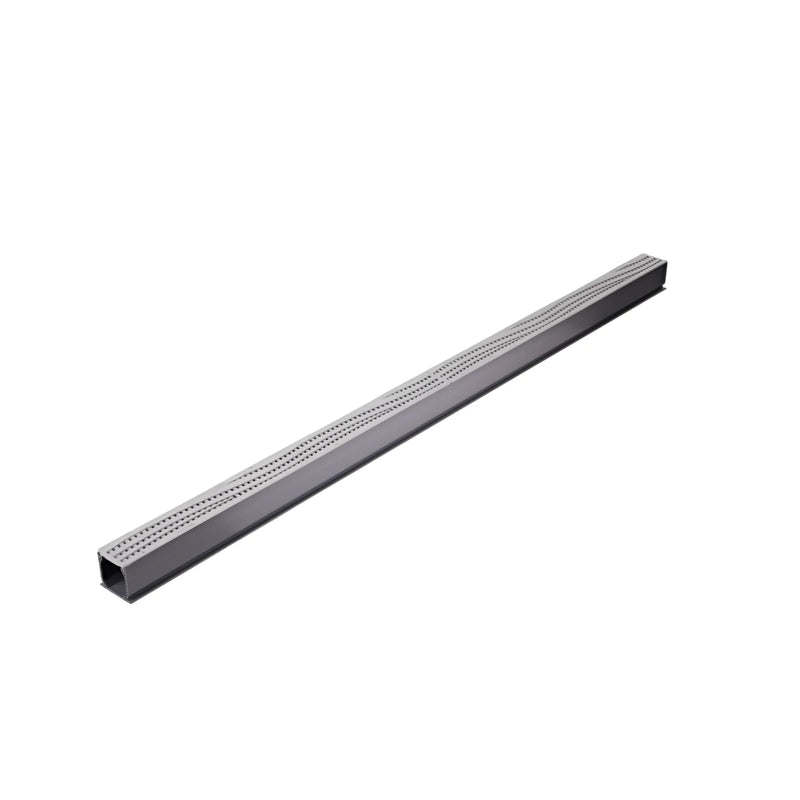

NDS 555GY - Mini Channel Decorative Wave Grate - Gray
SKU 555GY NDS
Save 20%
Original price
$33.63
Original price
$33.63
-
Original price
$33.63
Original price
$33.63
Current price
$26.90
$26.90
-
$26.90
Current price
$26.90
Availability:
20 in stock.
Mini™ Channel Drain Grate, 3-1/12 in. wide X 3 ft. long, Decorative Wave Design, Gray Plastic
Drainage doesn’t have to be drab when you spruce up your outdoor space with a Mini™ Channel Drain Grate featuring a decorative wave design. The drain grate prevents leaves and debris from entering and potentially clogging the drain system, and works with the Mini Channel Drain to drain light flows from pool & spa areas, concrete & paver patios, tennis courts, walkways, and driveways. The Mini Channel Drain Grate is made of polypropylene (PP) treated with UV inhibitors. Mini Channels are part of the NDS Profile Series™ Channel.
- Actual dimension 3.08"W x 36"L x .524"H
- Requires 4 #846 Screws
- High Density Polyethylene (HDPE) Grate
- Open surface area 5.73 square inches per lineal foot
- 17.54 GPM per minute per lf with 1/2" of head
- ADA Compliant
- Recommended for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 mph
- Class B Load Rating: 61-175 psi
Applications
- Prevent leaves and debris from entering the channel drain or trench drain and clogging the drainage system
- Mini Channel Drain Grate in plastic works with the Mini Channel system to drain light flows of water from pool & spa areas, concrete & paver patios, tennis courts, walkways, and driveways
- Use with the Mini Channel Drain, part of the NDS Profile Channel series
Features

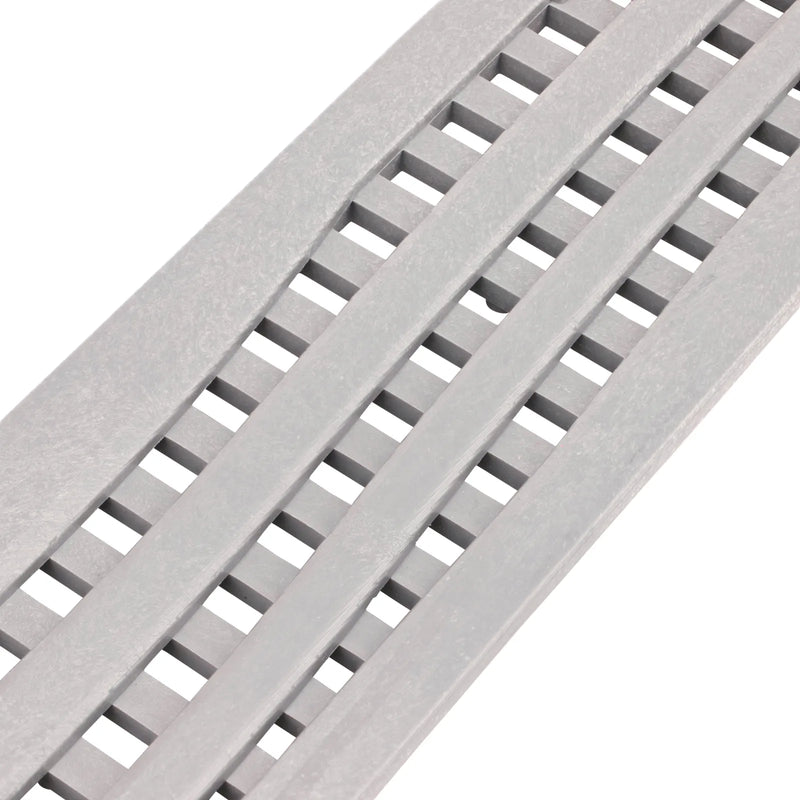

- Decorative grate features a “T” top design which overlaps the channel edge for a stylish effect
- Mini Channel Drain Grates, also known as drain covers, are available in a variety of colors, decorative styles, and materials
NDS Drainage Grates Flow Capacities (pdf)
Mini Channel Accessories (pdf)
Channel Drains, Grates and Accessories (pdf)
