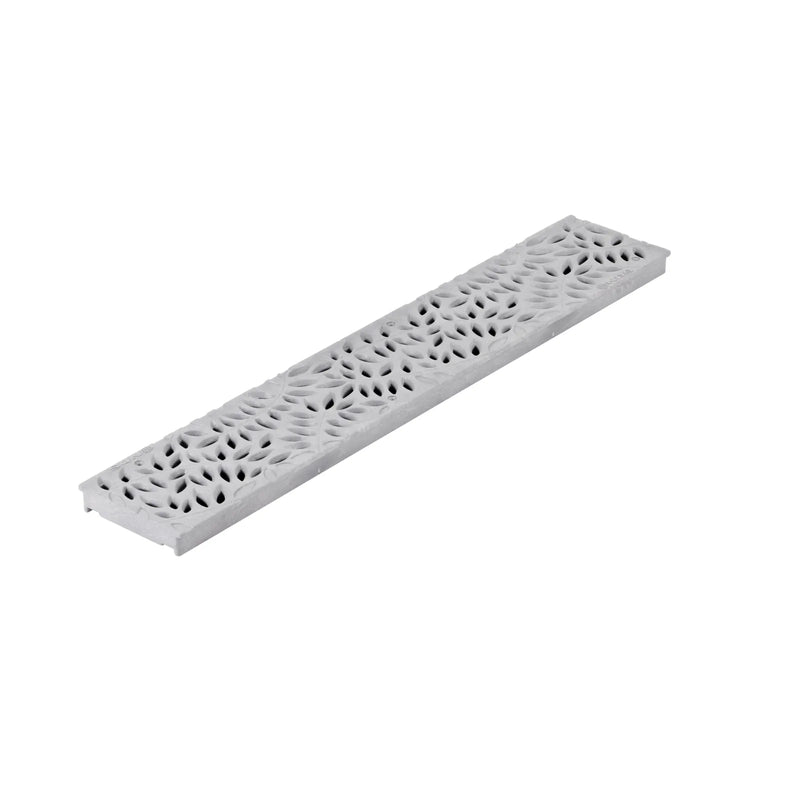

NDS 252GY - Spee-D 2ft. Botanical Decorative Grate, Gray

NDS 252GY - Spee-D 2ft. Botanical Decorative Grate, Gray

SKU 252GY NDS
Sale Sale
$48.86
$48.86 - $48.86
$48.86
$40.25
$40.25 - $40.25
$40.25
Request a quote

Special Order Item: Use the "Request a quote" drop-down form above to email product support.

We will ensure product availability, include pricing and email a Draft Order for your review.

* If you need a shipping cost, be sure to include your shipping address and contact number.

The Spee-D Botanical Channel Grate, is part of the NDS drainage system. As a proven alternative to traditional concrete drains, NDS grates feature UV inhibitors that prevent fading and cracking from the sun. Channel drains have a unique patented flying buttress design that provides load-bearing support from both sides as well as underneath. Spee-D Channel Drains are ideal for driveways, large decks, and commercial areas. Adequate in everything from patios to light vehicular traffic areas. These chemical-resistant and rustproof grates are maintenance-free, lightweight, and easy to install. Part of NDS Spee-D Series

Length 24"
Width 4.42"
Grate Opening 3/8 x 3-1/4"
Open Surface Area 15.56 Square Inches Per Foot
Gallons Per Minute 47.60 GPM
  • High Density Polyethylene (HDPE)
  • Opening: 15.56" sq. open space
  • UV Inhibitors
  • Rated to support automobiles, light trucks, and medium-duty pneumatic tires at speeds less than 20 m.p.h
  • Colors: #252 (BLACK), #252S (SAND), #252GR (GREEN), #252GY (GRAY)
  • ADA Compliant
  • Use with NDS Spee-D Channel Drains (#400)
  • 47.60 GPM
  • Load Rating: Class B (61-175 PSI)

Additional Resources

NDS Spee-D Botanical Channel Grate Technical Specifications
How To Install A NDS Spee-D Channel Drain
NDS Spee-D Channel Technical Specifications

Installation Instructions

NDS Spee-D Channel Drain Light Vehicular Traffic Installation - Pavers
NDS Spee-D Channel Drain Bottom Outlet Installation
NDS Spee-D Channel Drain End Outlet Installation
NDS Spee-D Channel Drain Typical Landscape Traffic Installation
NDS Spee-D Channel Drain Typical Light Vehicular Traffic Installation
NDS Spee-D Channel Drain Typical Pedestrian Traffic Installation
NDS Channel Drain Installation Guide
