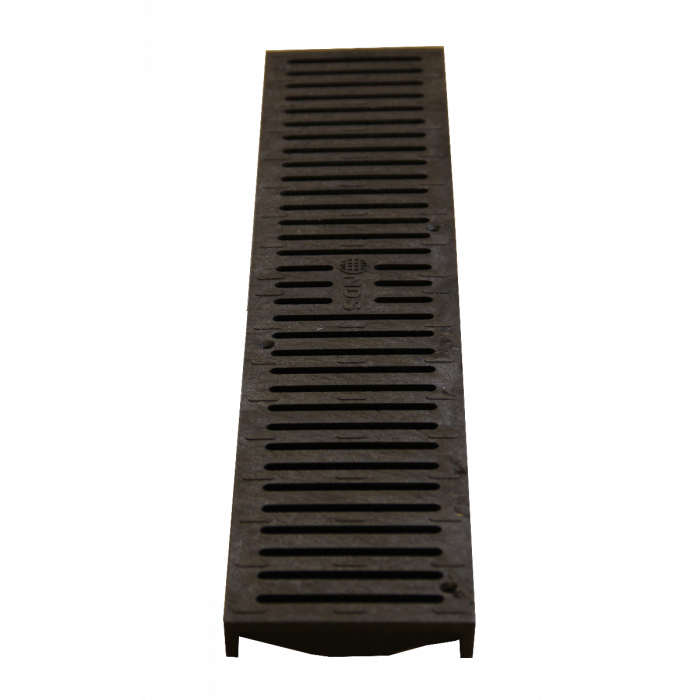

The Spee-D Channel Drain Grate is part of the NDS drainage system. As a proven alternative to traditional concrete drains, NDS grates feature UV inhibitors that prevent fading and cracking from the sun. Channel drains have a unique patented flying buttress design that provides load-bearing support from both sides as well as underneath. Spee-D Channel Drains are ideal for driveways, large decks, and commercial areas. Adequate in everything from patios to light vehicular traffic areas. These chemical-resistant and rustproof grates are maintenance-free, lightweight, and easy to install.

• HDPE ( High Density Polyethylene)
• Colors: #240 (White), #241 (Gray), #242 (Green), #243 ( Black), #244 (Sand) , and #251 (Brick Red)
• 16.76" Open Surface Area
• UV Inhibitors

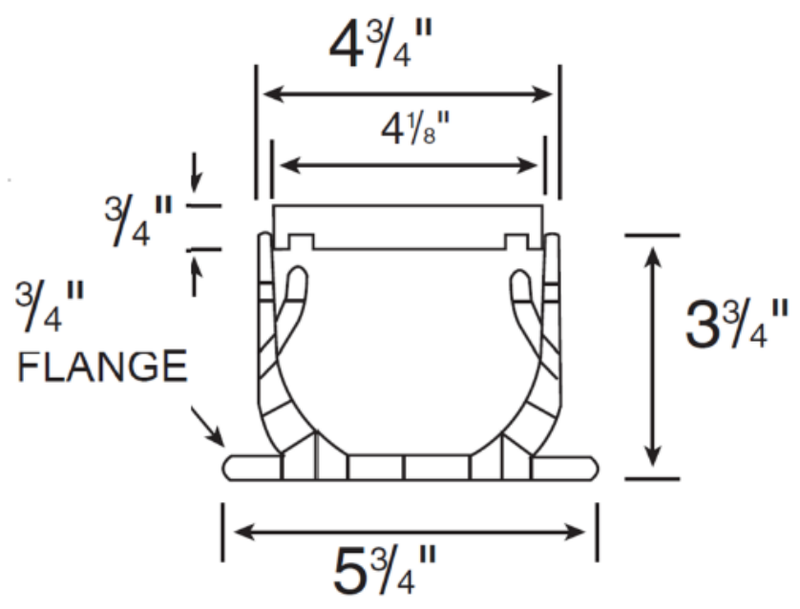

• Use With NDS Spee-D Channel Drain (SKU #400)
• Grate Opening: 3/8” x 3-1/4”
• Install with Four FH #8 x 1 in. screws (Sold Separately)

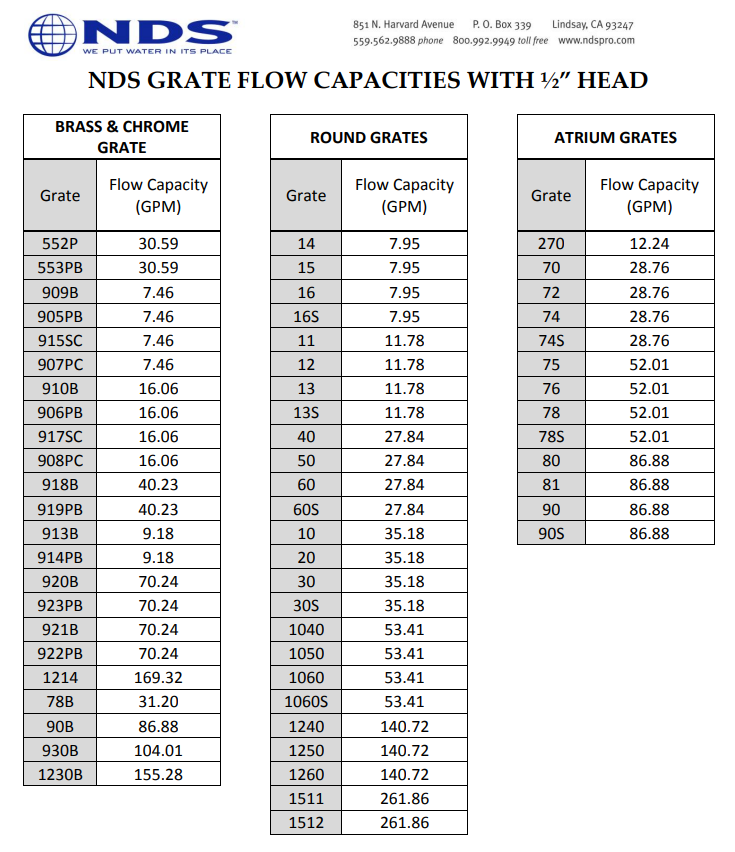

• 25.28 GPM per foot
• ADA Compliant
• Load Rating: Class B (61-175 PSI)
• Recommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph
