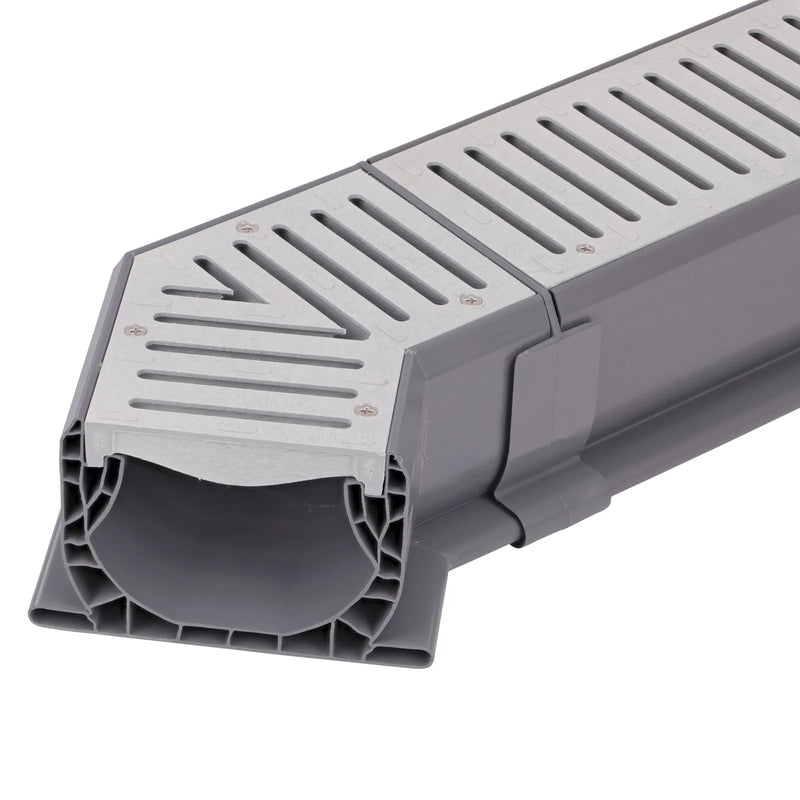

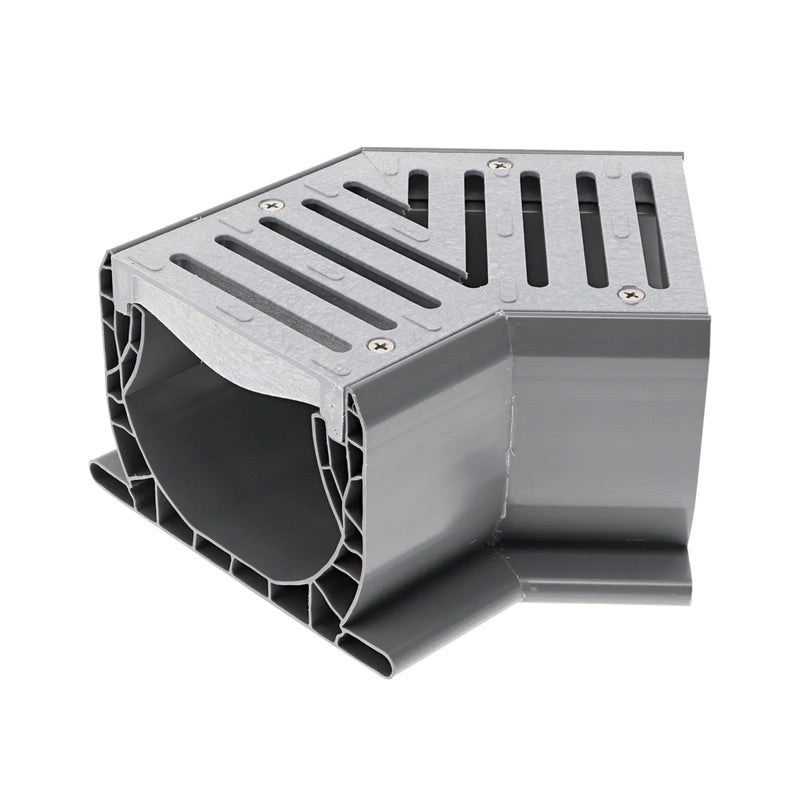

NDS 2301 - Spee-D Fabricated 45 Degree Elbow with Grate

SKU 2301 NDS
Original price $66.55 - Original price $66.55
Original price
$66.55
$66.55 - $66.55
Current price $66.55
Return Policy

We pride ourselves on our commitment to providing you the best experience with our products. If you encounter any issues with your order, reach out to us through our Contact Form.

While we take a look at your order details, please read our Return Policy.

The Spee-D Channel Fabricated 45-Degree Corner And Grate is part of the modular NDS Spee-D Drainage System. The product is constructed with durable lightweight and easy to install PVC material. Each Spee-D Channel Fabricated 45-Degree Corner And Grate are chemically resistant and rustproof. Spee-D Channel Fabricated 45-Degree Corner And Grates are a proven better alternative to traditional concrete drains that can be used for commercial as well as residential applications.

  • ADA Compliant
  • 25.28 GPM per foot
  • Create a 45° bend to your Spee-D channel drainage system layout; eliminate the need to saw a straight channel drain and grate to miter an angled turn
  • Open Surface Area: 19.3 square inches per foot
  • Spee-D Channel Couplings (NDS #248) are required to connect to NDS Spee-D Channel
  • UV Inhibitors
