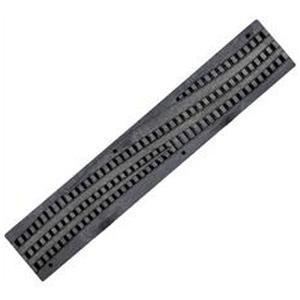

NDS 253 - Spee-D Wave Decorative Grate, Black

NDS 253 - Spee-D Wave Decorative Grate, Black

SKU 253 NDS
Sale Sale
$48.86
$48.86 - $48.86
$48.86
$40.25
$40.25 - $40.25
$40.25
Request a quote

Special Order Item: Use the "Request a quote" drop-down form above to email product support.

We will ensure product availability, include pricing and email a Draft Order for your review.

* If you need a shipping cost, be sure to include your shipping address and contact number.

The Spee-D Channel Grate, Decorative Wave is part of the NDS drainage system. As a proven alternative to traditional concrete drains, NDS grates feature UV inhibitors that prevent fading and cracking from the sun. Channel drains have a unique patented flying buttress design that provides load-bearing support from both sides as well as underneath. Spee-D Channel Drains are ideal for driveways, large decks, and commercial areas. Adequate in everything from patios to light vehicular traffic areas. These chemical-resistant and rustproof grates are maintenance-free, lightweight, and easy to install.

  • Length 24"
  • Width 4.12"
  • High Density Foam Polyolefin (HDPE)
  • Open Surface Area: 15.56" square Inches per Ft.
  • UV Inhibitors
  • Colors: Black (#253), Gray (#253GY), Green (#253GR), Sand (#253S)
  • Use With NDS Spee-D Channel Drain (#400)
  • ADA Compliant
  • Rated to support automobiles, light trucks, and medium-duty pneumatic tires at speeds less than 20 m.p.h
  • Will accommodate 47.60 gallons per minute 1/2" of head
  • Load Rating: Class B (61-175 PSI)

Additional Resources

NDS Spee-D Channel Grate, Decorative Wave Technical Specifications
How To Install A Spee-D Channel Drain
NDS Spee-D Channel Technical Specifications
NDS Channel Grate Outlet Flow Capacities

Installation Instructions

NDS Spee-D Channel Drain Light Vehicular Traffic Installation - Pavers
NDS Spee-D Channel Drain Bottom Outlet Installation
NDS Spee-D Channel Drain End Outlet Installation
NDS Spee-D Channel Drain Typical Landscape Traffic Installation
NDS Spee-D Channel Drain Typical Light Vehicular Traffic Installation
NDS Spee-D Channel Drain Typical Pedestrian Traffic Installation
NDS Channel Drain Installation Guide
