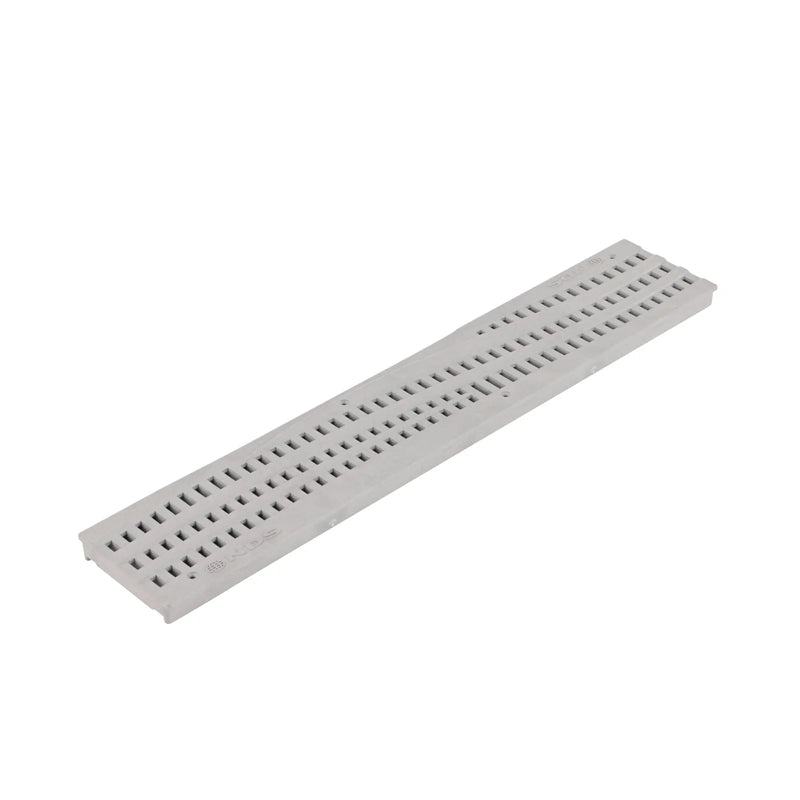

The Spee-D Channel Grate, Decorative Wave is part of the NDS drainage system. As a proven alternative to traditional concrete drains, NDS grates feature UV inhibitors that prevent fading and cracking from the sun. Channel drains have a unique patented flying buttress design that provides load-bearing support from both sides as well as underneath. Spee-D Channel Drains are ideal for driveways, large decks, and commercial areas. Adequate in everything from patios to light vehicular traffic areas. These chemical-resistant and rustproof grates are maintenance-free, lightweight, and easy to install.

Color Grey

Length 24"

Width 4.12"

• High Density Foam Polyolefin (HDPE)
• Open Surface Area: 15.56" square Inches per Ft.
• UV Inhibitors
• Colors: Black (#253), Gray (#253GY), Green (#253GR), Sand (#253S)

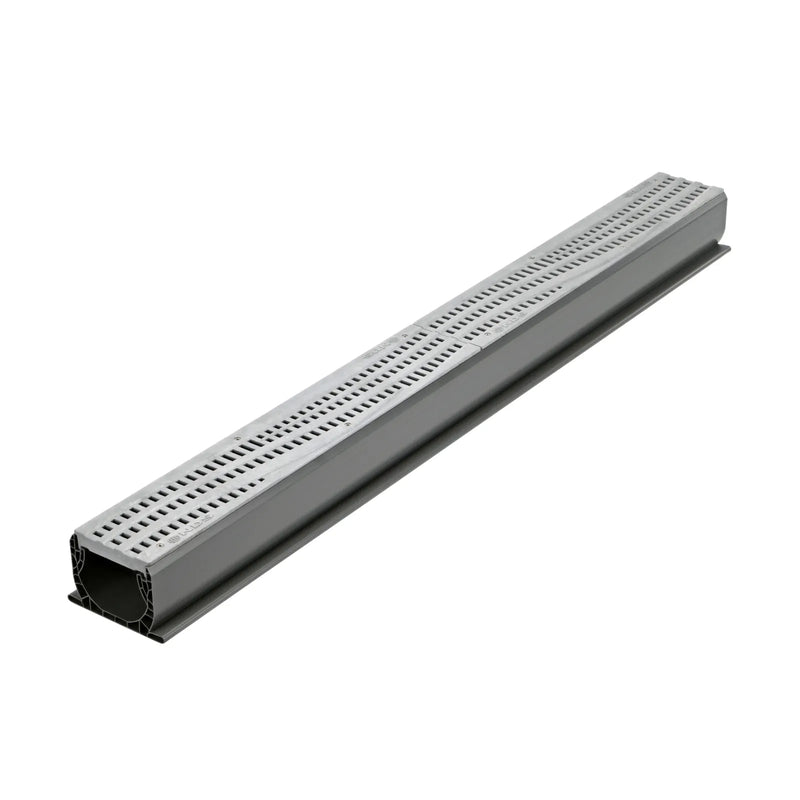

• Use With NDS Spee-D Channel Drain (#400)
• ADA Compliant
• Rated to support automobiles, light trucks, and medium-duty pneumatic tires at speeds less than 20 m.p.h
• Will accommodate 47.60 gallons per minute 1/2" of head
• Load Rating: Class B (61-175 PSI)
