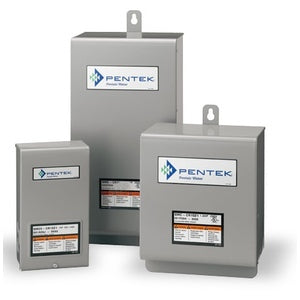

Pentair SMC-CR1521-02 Pentek 1.5-HP Submersible Water Pump Control Box

Submersible Motor Controls - Water Pump Control Box
Standard controls for single-phase 3-wire submersible motors

-- Specifications: ---
• Type: CSCR (capacitor start / capacitor run)
• Horsepower: 1+AL0-
• Kilowatts: 1.1
• Phase: 1
• Volts: 230 AC
• Frequency: 60 Hz
• Enclosure size: B (8.5 inch height, 7.75 inch width, 5.5 inch depth)

Applications Water systems…for residential, multiple housing, farm and commercial installations, where a submersible 3-wire motor is used.

Design Features
Enclosure

• Rugged NEMA 3R Enclosure – suitable for indoor/ outdoor use
• Multiple-Size Electrical Knockouts
• Rated for 50°C (122°F)

Internals

• High-Load Voltage Relay
• Heavy-Duty Contacts External Access to Overload Reset – 1.5HP - 5HP
• Heavy-Duty Terminal Connectors – suitable for up to #4 AWG wire
• Industry Standard Wiring Connections – easy-to-read wiring diagrams
• Overload Protection Built-in (50 Hz models)
