NDS 9250 - Slim Channel Bottom Outlet
NDS 9250 - Slim Channel Bottom Outlet
NDS 9250 - Slim Channel Bottom Outlet
NDS 9250 - Slim Channel Bottom Outlet

NDS 9250 - Slim Channel Bottom Outlet

SKU 9250 NDS

Save 20% Save 20%
$6.06
$6.06 - $6.06
$6.06
$4.85
$4.85 - $4.85
$4.85
Availability:
27 in stock.

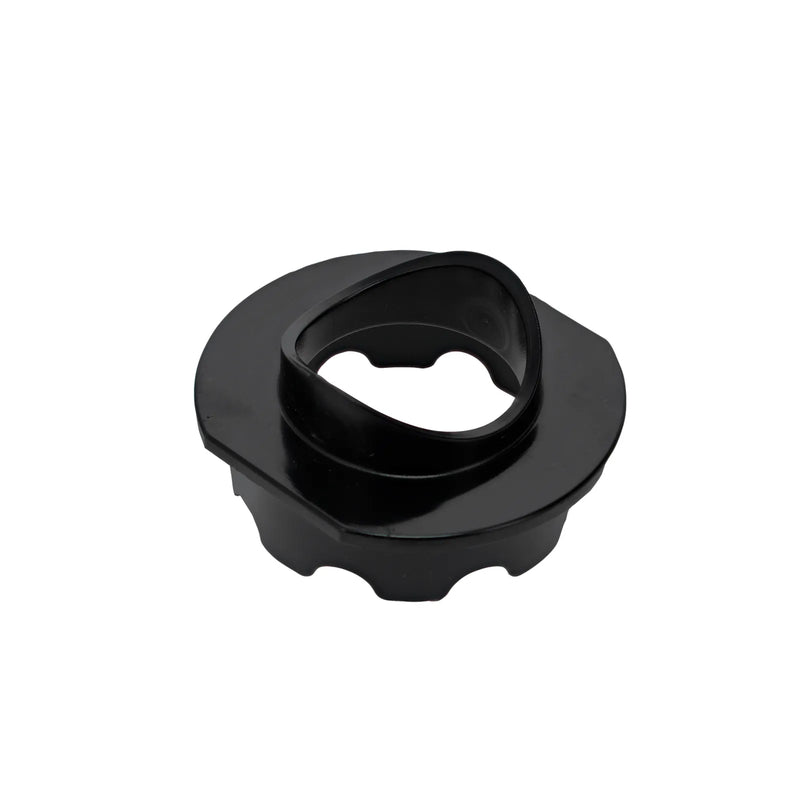

Convey stormwater in the Slim Channel Drain to drain pipe with the Slim™ Channel Drain Bottom Outlet. The convenient component can be installed anywhere along the channel run using a 1-1/2 in. hole saw. Made of polyvinyl chloride, the bottom outlet can be solvent-welded to the channel with PVC glue for a water-tight connection. Bottom outlet connects to 1-1/2 in. Sch. 40 pipe. Slim Channels are part of the NDS Profile Series™ Channel, and ideal for capturing light water flows from pool and spa areas, concrete and paver patios, and walkways.

Applications
  • Install bottom outlet anywhere along the channel run and connect to 1-1/2 in. Sch. 40 pipe
  • The Slim Channel Drain system collects light flows of water from pool & spa areas, concrete & paver patios, and walkways; Channel drains and trench drains prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream
  • Use with the Slim Channel Drain, part of the NDS Profile Channel series
Features

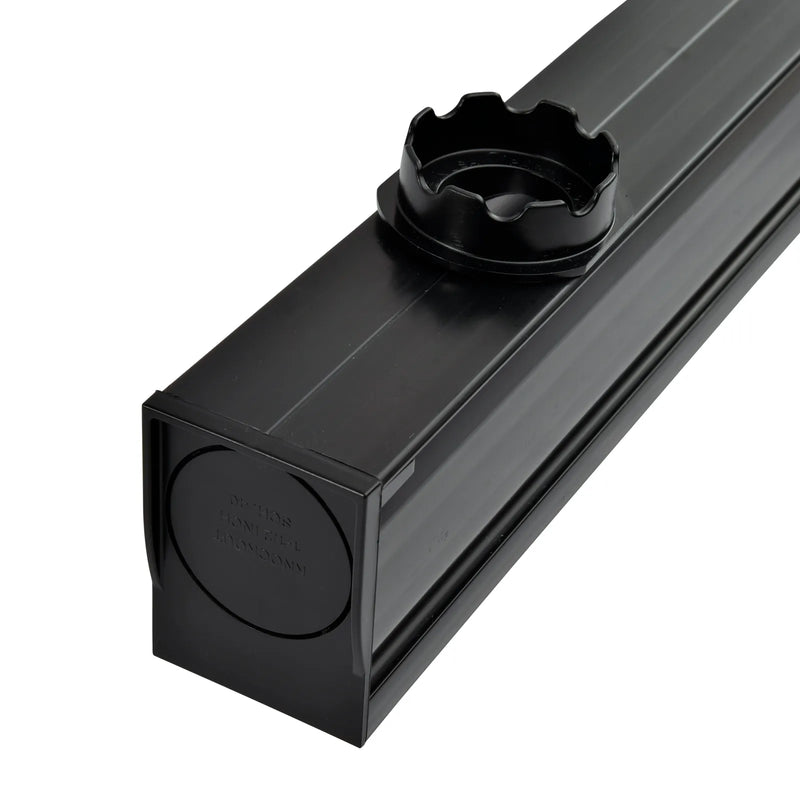

  • Made to attach anywhere along the channel run to outlet to 1-1/2 in. Sch. 40 pipe

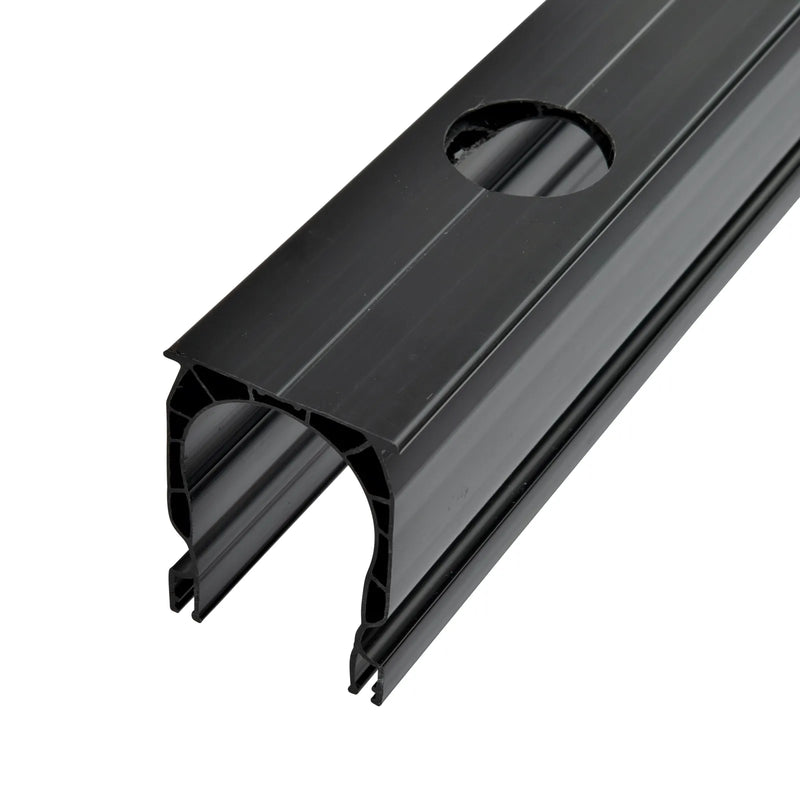

  • Channel guide on Slim Channel Drain ensures the hole cut for Bottom Outlet will be centered

Slim Channel Accessories (pdf)
Slim Channel Fabricate Fittings (pdf)
Slim Channel Grates (pdf)
NDS Drainage Grates Flow Capacities (pdf)
