NDS 9206GKIT - Slim Channel Kit Gray 6 ft.
NDS 9206GKIT - Slim Channel Kit Gray 6 ft.
NDS 9206GKIT - Slim Channel Kit Gray 6 ft.

NDS 9206GKIT - Slim Channel Kit Gray 6 ft.

SKU NDS 9206GKIT NDS

Save 20% Save 20%
$76.31
$76.31 - $76.31
$76.31
$61.05
$61.05 - $61.05
$61.05
Availability:
22 in stock.

Keep hardscapes free of excess water with an attractive drainage solution that’s easy to install and maintain. The Slim™ Channel Drain captures light flows of runoff from pool and spa areas, concrete and paver patios, and walkways to prevent slippery mildew growth, concrete erosion, and other costly property damage. 6 ft. kit includes the polyvinyl (PVC) Slim Channel Drain preassembled with 2 removable slotted polypropylene (PP) grates, 2 end caps/outlets, 2 anchor clips, 1 coupling, and 1 bottom outlet. Material is treated with UV inhibitors. Slim Channels are part of the NDS Profile Series™ Channel.

Applications
  • Channel drains and trench drains prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream; Drain grates, also known as drain covers, prevent leaves and debris from entering and clogging the drainage system
  • The Slim Channel Drain system collects light flows of water from pool & spa areas, concrete & paver patios, and walkways and directs to drain pipes for proper release downstream
  • Works with Slim Channel Drain components, part of the NDS Profile Channel series
Features
  • Slim Channel drains are 2-1/4 in. wide, 3 in. high, and 6 ft. long; length can be cut to size with a saw
  • Removable grates make it easy to clean and maintain the Slim Channel Drain system
  • Slim Channel kits are available with sand or gray slotted grates

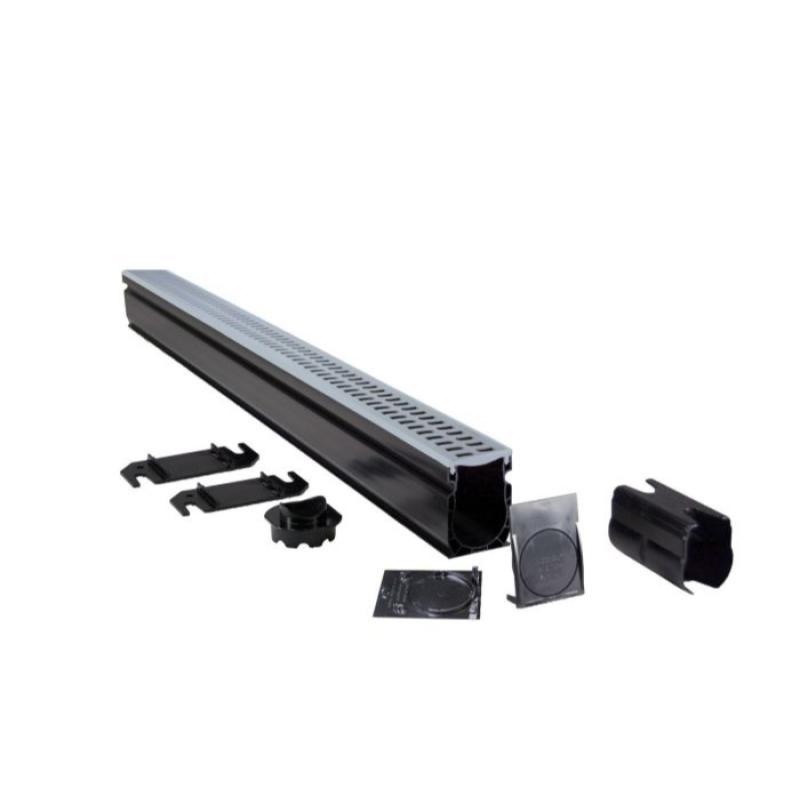

Includes:

  • 1 ea.  NDS Slim Channel #9206
  • 2 ea.  NDS Slim Channel Gray Grates #9243
  • 1 ea.  NDS Slim Channel Coupling #9248 (connects Slim Channel & Slim Channel Fittings)
  • 2 ea.  NDS Slim Channel End Cap/Outlet #9247
  • 2 ea.  NDS Slim Channel Anchor Clips #9270
  • 1 ea.  NDS Slim Channel Bottom Outlet #9250

Slim Channel Accessories (pdf)
Slim Channel Fabricate Fittings (pdf)
Slim Channel Grates (pdf)
NDS Drainage Grates Flow Capacities (pdf)
