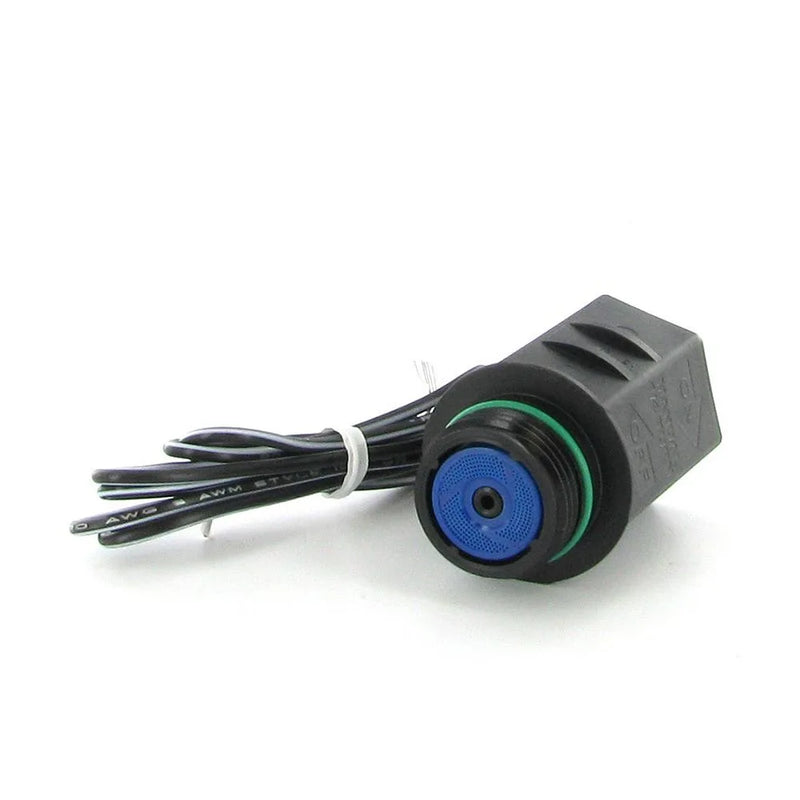

• Type: Replacement Solenoid
• Compatibility: Rain Bird DV, DVF, ASVF, JTV Series Valves

Features & Benefits

Kit includes:

• solenoid
• solenoid o-ring
• solenoid filter

DV SERIES

• Double-filtered pilot-flow design for maximum reliability
• Balanced-pressure diaphragm for long life
• External bleed to manually flush system of dirt and debris during installation and system start up
• Internal bleed for spray-free manual operation
• Energy efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
• Buna-N diaphragm with self-cleaning 90-mesh (200 micron) pilot water filter and captive spring
• Operates in low-flow and Xerigation® applications when the RBY filter is installed upstream
• 1¼” (3.2 cm) stainless steel phillips head screws
• Accepts latching solenoid for use with
• Rain Bird battery-operated controllers
• Height: 4½” (11.4 cm); (Angle) 5½” (14 cm)
• Length: 43 ⁄8” (11.1 cm);(Angle) 3¾” (9.5 cm)
• (MB) 5¾” (14.6 cm)
• Width: 31 3” (8.4 cm)

ASVF SERIES

• Combination reliable DVF valve and atmospheric backflow preventer in one unit
• Incorporates all features of DVF Series valves, plus meets I.A.P.M.O. and A.S.S.E. listing specifications and City of Los Angeles listing approved
• Must be installed at least 6” (15.2 cm) above the highest point of water in the sprinkler pipe it serves
• No valve can be located downstream of the anti-siphon valve
• Consult local codes
• Height: 6¼” (15.8 cm)
• Length: 61 ⁄10” (15.5 cm)
• Width: 31 ⁄5” (8.1 cm)
