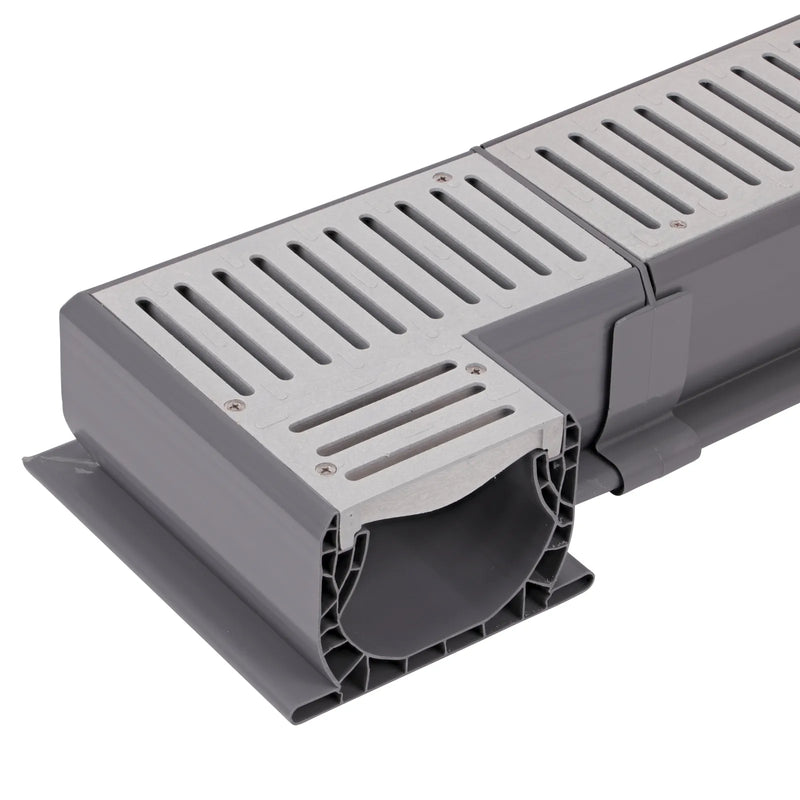

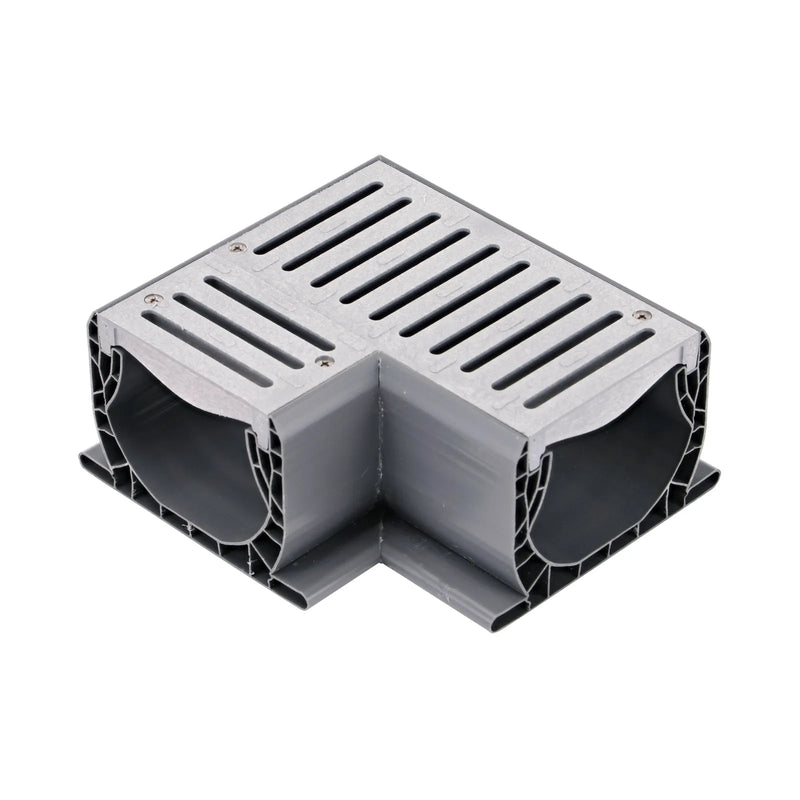

Spee-D Channel Fabricated 90-degree Corner and Grate

SKU 2381 NDS
Original price $49.10 - Original price $49.10
Original price
$49.10
$49.10 - $49.10
Current price $49.10
Return Policy

We pride ourselves on our commitment to providing you the best experience with our products. If you encounter any issues with your order, reach out to us through our Contact Form.

While we take a look at your order details, please read our Return Policy.

The Spee-D Channel Fabricated 90-degree Corner and Grate is part of the NDS Spee-D Series that allows channels to be connected at a 90° bend. This accessory features UV inhibitors that are used to prevent fading and cracking from the sun and are chemical-resistant, rustproof and maintenance-free, lightweight, and easy to install.

  • UV Inhibitors
  • 16.8 sq. in. per linear ft. open surface area. 51 GPM per ft. flow rate
  • Open Surface Area: 19.3 square inches per foot
  • Use with NDS Spee-D Channel drain series
  • Create a water-tight connection using solvent-weld PVC glue
  • Used to create a 90° turn left or right in your Spee-D channel drainage system layout
  • Spee-D Channel Couplings (NDS #248) are required to connect to NDS Spee-D Channel
  • Load Rating: Class B (61-175 PSI)
  • ADA Compliant
