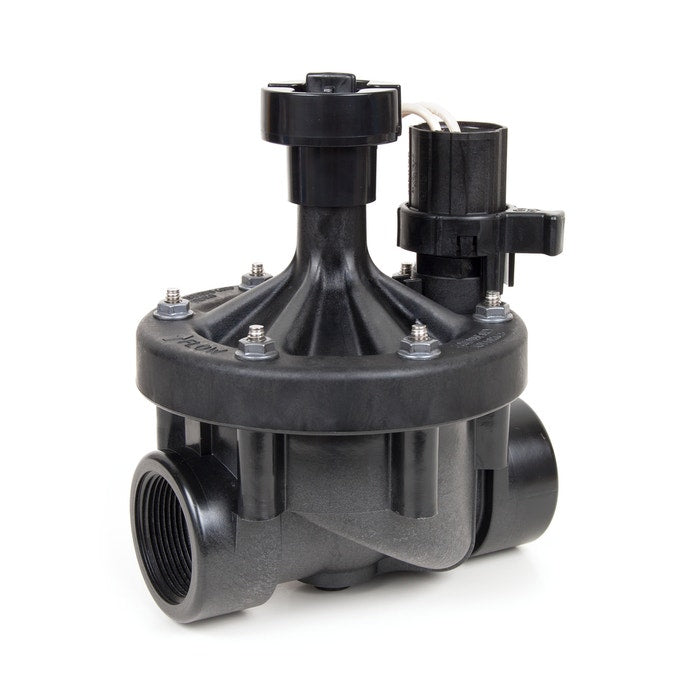

The PEB Series is our most durable Rainbird plastic irrigation valve. This industrial-strength glass-filled nylon globe valve is ideal for commercial irrigation applications.

The PESB series incorporates innovative scrubber technology for reliable performance in dirty water irrigation applications.

Features

Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance
Globe configuration
Normally closed, forward flow design
Slow closing to prevent water hammer and subsequent system damage
Low flow capability for a wide range of applications
One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service
Flow control handle adjusts water flows as needed
Manual internal bleed manually operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first
Manual external bleed permits flushing debris from the system. Recommended for system start up and after repairs
Stainless steel studs molded into the body. Bonnet can be attached and removed more easily and more often without damaging threads
Nylon scrubber scrapes a stainless steel screen to clean and break down grit and plant material. Prevents debris build-up and clogging (PESB Series only)
Five-year trade warranty

Specs

Pressure: 20 to 200 psi (1.4 to 13.8 bar)
Flow without PRS-D option: 0.25 to 300 GPM (0.06 to 68.1 m3/h; 0.02 to 18.90 l/s)
Flow with PRS-D option: 5 to 300 GPM (1.14 to 68.1 m3/h; 0.32 to 18.90 l/s)
Temperature: Up to 150° F (66° C)
Power: 24VAC 50/60Hz (cycles/sec) solenoid power requirement
Inrush current: 0.41A (9.9VA) at 50/60Hz
Holding current: 0.14A (3.43VA) at 50/60Hz
Options
Accommodates optional, field-installed PRS-D pressure regulating module to ensure optimum sprinkler performance Regulates up to 100 psi (6.9 bar)
Accepts latching solenoid for use with Rain Bird battery-operated controllers up to 150 psi (10.35 bar)
Compatible with ESP-LXD decoders
Optional purple flow control handle for non-potable water applications PEB-NP-HAN1 (1"); PEB-NP-HAN2 (1½" and 2")

Dimensions

100-PEB: 6½" x 4" x 4" – (16.5 cm) x (10.2 cm) x (10.2 cm) H x L x W
150-PEB: 8" x 6" x 6" – (20.3 cm) x (15.2 cm) x (15.2 cm) H x L x W
200-PEB: 8" x 6" x 6" – (20.3 cm) x (15.2 cm) x (15.2 cm) H x L x W
300-PESB: 13 1/4" x 8" x 7" – (34.61 cm) x (20.32 cm) x (17.78 cm) H x L x W

Model Comparison


Model

  • 100-PEB and 100-PESB: 1" NPT
  • 150-PEB and 150-PESB: 1 1⁄2" NPT
  • 200-PEB and 200-PESB: 2" NPT
  • 300-PESB: 3" NPT
  • Note: BSP threads available; specify when ordering
