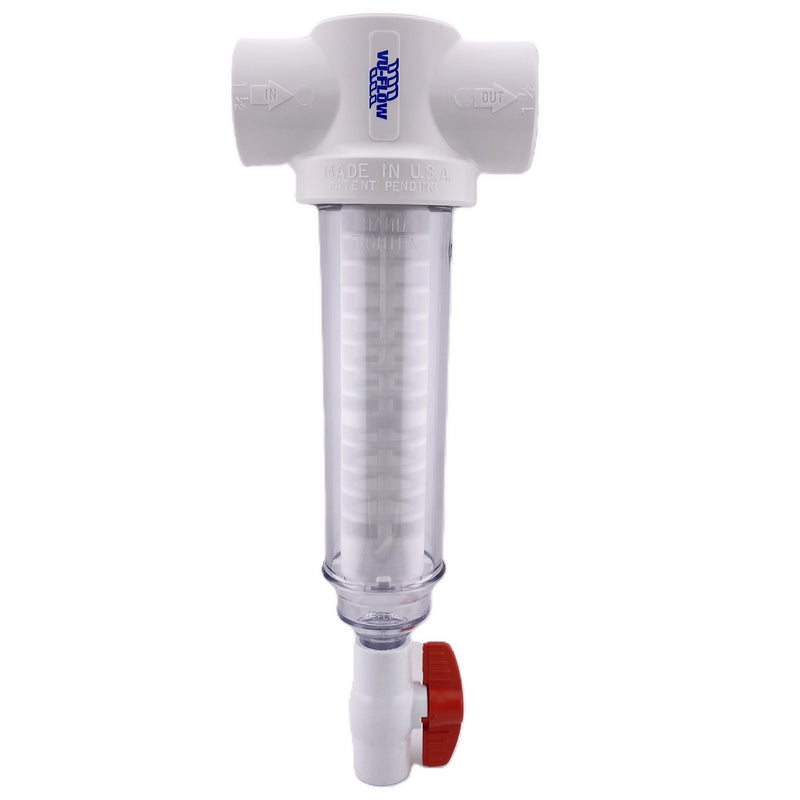

Vu-Flow NT150-100P Separator Filter removes sediment and debris from irrigation water with dual-stage filtration. The 100-mesh polyester screen captures lighter contaminants, protecting downstream equipment and nozzles. Includes 1/2" cleanout purge valve for easy maintenance. T-style 1.5" connection fits standard landscape irrigation systems. Essential for well water and reclaimed water applications.

Specifications:

• Flow capacity: 10-50 GPM
• Max pressure: 150 PSI
• Dimensions: 15-3/8”L x 5-1/4”W
• Port size: 1.5” slip

Recommended Filter Sizes:
2" Filter: 18-100 GPM
1.5" Filter: 10-50 GPM
1" Filter: 1-25 GPM

Cold Water Installation Sheet pdf
