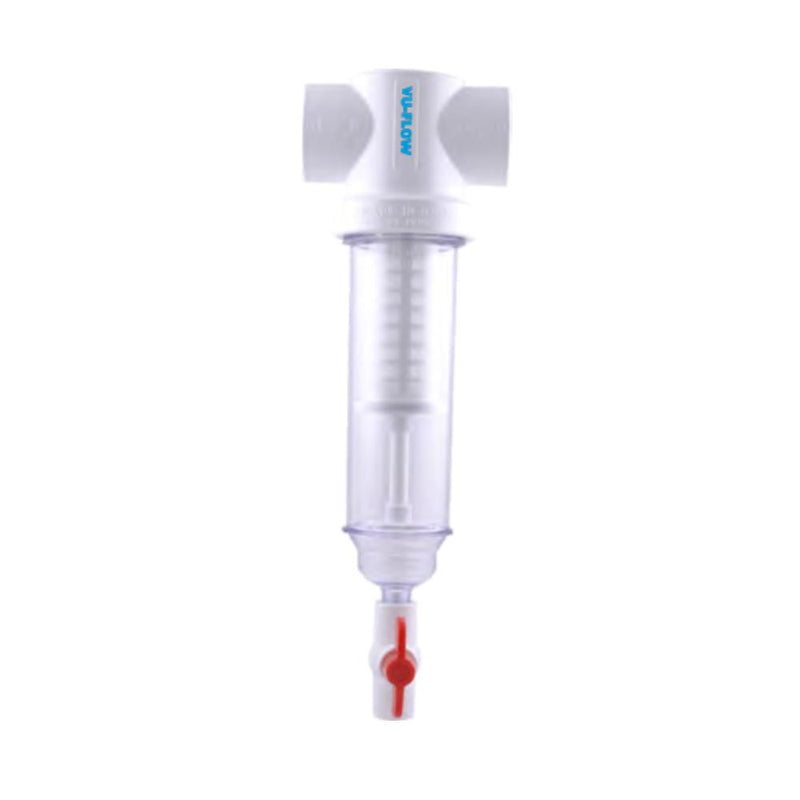

Vu-Flow NT2SO-100P Sand Separator Filter removes sediment and debris from irrigation water with dual-stage filtration. The spin-out chamber collects heavy particles while the 100-mesh polyester screen captures lighter contaminants, protecting downstream equipment and nozzles. Includes 1/2" cleanout purge valve for easy maintenance. T-style 1.5" connection fits standard landscape irrigation systems. Essential for well water and reclaimed water applications.

Specifications:

• Flow capacity: 18-100 GPM Max pressure: 150 PSI
• Dimensions: 17-7/8”L x 5-1/2”W
• Port size: 2” slip

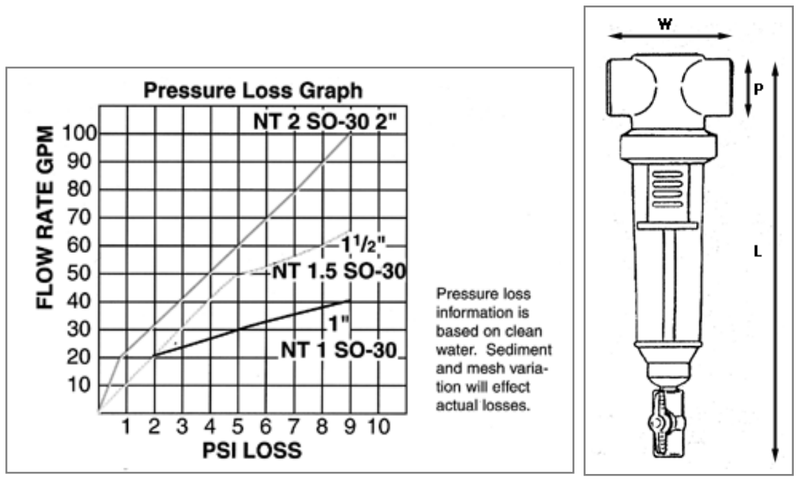

Recommended Filter Sizes:
2" Filter: 18-100 GPM
1.5" Filter: 10-50 GPM
1" Filter: 1-25 GPM

Cold Water Installation Sheet pdf
