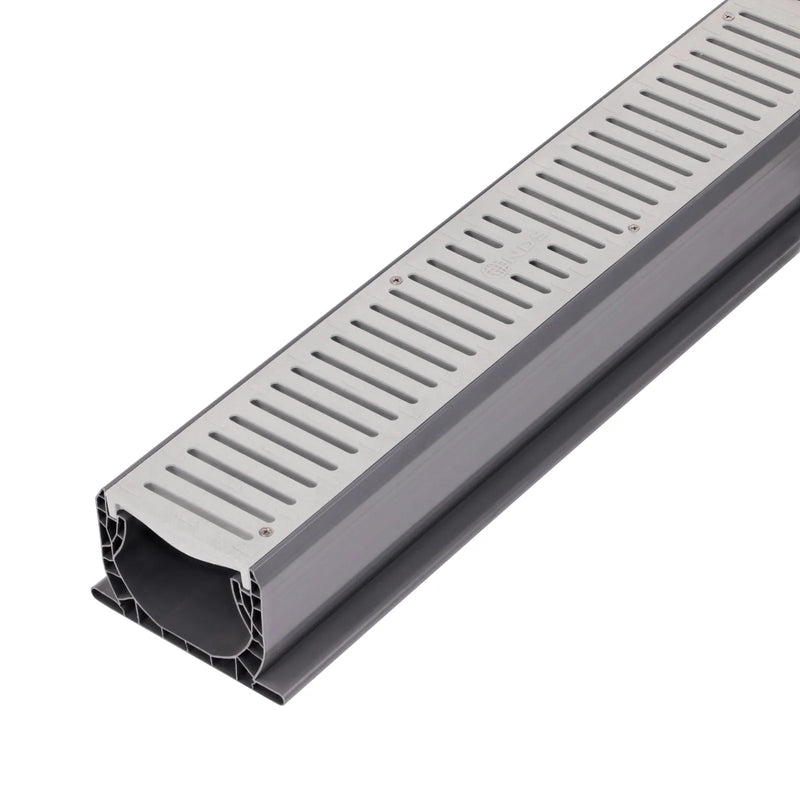

Spee-D Channel 10 FT with Gray Plastic Grates

The NDS Spee-D Channel systems are lightweight and easy to install and provide a quick and simple alternative to traditional concrete channels. For residential and non-residential applications, the Spee-D Channel has a greater surface area for drainage than the micro and mini-channels. Effective in everything from patios to light vehicular traffic areas, the most popular applications for this channel include swimming pools, spas, and patios. Spee-D channel drains can range from 4ft to 10ft lengths to easily adapt to any job. Each channel drain has available accessories that effortlessly connect to an assortment of pipe types and sizes, such as end outlets, bottom outlets, and tees. This flexibility allows you to conveniently construct a customized drainage system for your marvelous home. The Spee-D channel drain snaps together efficiently for a smoother installation with flanges on the bottom of the channel that provides a lip for anchoring, which ensures a straight installation and prevents floating. The NDS Spee-D Channel grates are available in six colors, making them accessible to match the surrounding surfaces.

  • High Density Foam Polyolefin
  • Sections of Spee-D Channel can be connected together using the either the Channel Strainer Coupling (NDS part # 245) or the Channel Coupling (NDS part # 248)
  • UV Inhibitors
  • Chemically resistant, rustproof and maintenance-free
  • ADA Compliant
  • he channel can also be cut to any angle using a miter saw. The same angle will need to be cut into another piece of channel. Glue the pieces together and secure the joint before encasing in concrete
  • Create a water-tight connection between channels and from outlet to pipe using solvent-weld PVC glue
  • Product Class: 25PF
  • The channel itself will hold about the same volume of water as a 4” diameter pipe
  • NDS part # 245 connects to 2” schedule 40 pipe and part # 249 connects to both 3” sewer and drain pipe and 4” sewer and drain fittings
  • Use with Spee-D 45º and 90º Elbows, Tees, Crosses, and Outlets to customize your layout
  • Class B Load Rated (61-175 PSI)
  • Spee-D Channel is available in 4 foot and 10 foot sections. The channel can be easily cut to any length. Call In Directly for our NDS 10 FT Spee-D Channel Drain Pricing
